SL024860 Bearing Technical Specifications
-
- Bore Diameter(d) 300mm
- Outer Diameter (D) 380mm
- Width(B) 80mm
-
- Dynamic Load Rating (Cr) 820kN
- Static Load Rating (Cor) 2090kN
-
- Weight 22kg
SL02 Series Double Row Full Complement Cylindrical Roller Bearing (SL02 4860) - Structure: Double row full complement cylindrical roller bearing without lubrication grooves - Size Code: 4860 - Key Dimensions: Bore 300mm | Outer Diameter 380mm | Width 80mm - Load Capacity: Dynamic Load 820 000kN | Static Load 2 090 000kN - Application: Engineered for extremely high radial loads with maximum stiffness, ideal for metallurgical equipment and large reducers, especially suitable for heavy-duty machinery (e.g., rolling mills, mining crushers) The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.

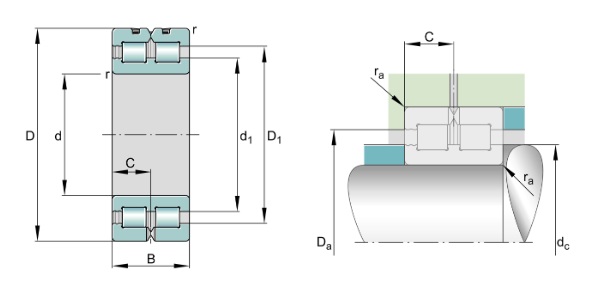

Main Dimensions
300mm × 380mm × 80mm
| Bearing Model | SL024860 | |
|---|---|---|
| Cross Reference | NNCL4860V | |
| Dimensions | d | 300mm |
| D | 380mm | |
| B | 80mm | |
| rs | 2.1mm | |
| s | 6mm | |
| C | 40mm | |
| Install Dimensions | d1 | 329mm |
| D1 | ||
| E | 356mm | |
| Basic Load Rating | Cr | 820Kn |
| Cor | 2090Kn | |
| Limiting speed n1 oil ≈ | Min-1 | 800r/min |
| Weight | 22Kg | |
Cage
full complement rollers without cage ( customizable on demand in steel, brass, machined brass, etc.)
Precision Rating
P0 (Customizable on demand in P0/P6/P5/P4 grades; higher precision for demanding applications)
Clearance
C3 clearance (customizable on demand in C0/C2/C3/C4/C5 specifications)
Brand
WJY / OEM Available
Origin
Quality Standard
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearings prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
