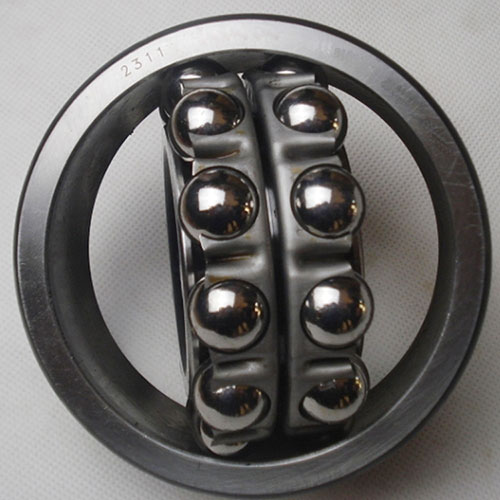

Self-aligning ball bearings are designed with a spherical raceway in the outer ring, allowing the bearing to accommodate angular misalignment between the shaft and housing.
Compared with standard deep groove ball bearings, self-aligning ball bearings provide better performance where shaft deflection, mounting errors, or housing deformation may occur.
JYHY Group manufactures self-aligning ball bearings for industrial applications, offering different series including open bearings, sealed bearings and tapered bore designs.
Applications
- Electric motors: Maintain stable operation despite shaft deflection
- Conveyor systems: Ensure smooth transmission performance
- Mining equipment: Adapt to harsh environments and heavy loads
- Agricultural machinery: Handle variable working conditions
Product Specifications
| Inquiry | Bearing No. | d | D | B | Cr | Cor | Weight |
|---|---|---|---|---|---|---|---|
| 1200 | 10 | 30 | 9 | 0.035 | |||
| 1200K | 10 | 30 | 9 | 0.035 | |||
| 2200K | 10 | 30 | 14 | 0.047 | |||
| 2200 | 10 | 30 | 14 | 0.047 | |||
| 1300 | 10 | 35 | 11 | 0.06 | |||
| 1300K | 10 | 35 | 11 | 0.06 | |||
| 2300 | 10 | 35 | 17 | 0.085 | |||
| 1201 | 12 | 32 | 10 | 0.042 | |||
| 1201K | 12 | 32 | 10 | 0.042 | |||
| 2201K | 12 | 32 | 14 | 0.053 | |||
| 2201 | 12 | 32 | 14 | 0.053 | |||
| 1301K | 12 | 37 | 12 | 0.07 | |||
| 1301 | 12 | 37 | 12 | 0.07 | |||
| 2301 | 12 | 37 | 17 | 0.095 | |||
| 1202 | 15 | 35 | 11 | 0.051 | |||
| 1202K | 15 | 35 | 11 | 0.051 | |||
| 2202 | 15 | 35 | 14 | 0.06 | |||
| 1302K | 15 | 42 | 13 | 0.099 | |||
| 1302 | 15 | 42 | 13 | 0.099 | |||
| 2302 | 15 | 42 | 17 | 0.114 |
