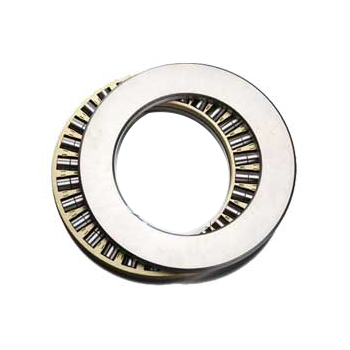

Single-direction thrust cylindrical roller bearings are designed to support extremely high axial loads in low-speed heavy-duty industrial applications. They offer high rigidity, compact structure, and stable performance under continuous load conditions.
Key features include:
- Precision cylindrical rollers for uniform axial load distribution
- High-strength bearing steel for heavy-duty operation
- High stiffness design for minimal axial deformation
- Suitable for gearbox, extrusion, and heavy industrial machinery
- Available in multiple series including 811, 812, 893 and 894 types
Applications
- Gearboxes and transmission systems
- Plastic extrusion machines and industrial presses
- Heavy-duty machine tools and vertical lathes
- Mining and metallurgical equipment
- Steel rolling and continuous processing lines
- Energy and heavy industrial drive systems
Product Specifications

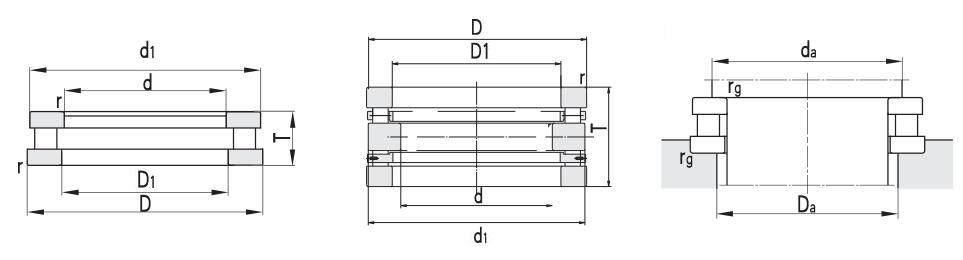

| Inquiry | Bearing No. | d | D | T | Cr | Cor | Weight |
|---|---|---|---|---|---|---|---|
| 81140 | 200 | 250 | 37 | 3080 | 3600 | 3.74 | |
| 81240 | 200 | 280 | 62 | 700 | 3000 | 12.9 | |
| 81148 | 240 | 300 | 45 | 490 | 2280 | 7.43 | |
| 81152 | 260 | 320 | 45 | 515 | 2400 | 8.78 | |
| 81256 | 280 | 380 | 80 | 1130 | 4680 | 29.2 | |
| 81256F1 | 280 | 380 | 80 | 1130 | 4680 | 29 | |
| 81260/YB5 | 300 | 420 | 95 | 1470 | 5950 | 41.6 | |
| 81260 | 300 | 420 | 95 | 1540 | 1550 | 41.6 | |
| 81260F1 | 300 | 420 | 95 | 1540 | 1550 | 41.3 | |
| 82760ZW | 300 | 460 | 80 | 780 | 5600 | 54.6 | |
| 81164 | 320 | 400 | 63 | 720 | 4100 | 19.7 | |
| 89468ZT | 340 | 620 | 170 | 4480 | 21000 | 241 | |
| 81172/P5 | 360 | 440 | 65 | 890 | 4030 | 22.3 | |
| 81184 | 420 | 500 | 65 | 930 | 4800 | 27.2 | |
| 81188 | 440 | 540 | 80 | 1430 | 1680 | 41.5 | |
| 89492ZT | 460 | 800 | 206 | 6500 | 32000 | 464 | |
| 81196F1 | 480 | 580 | 80 | 1550 | 8100 | 44.1 | |
| 812/500 | 500 | 670 | 135 | 3520 | 3600 | 137 | |
| 811/530 | 530 | 640 | 85 | 1750 | 9700 | 56.7 | |
| 811/600 | 600 | 710 | 85 | 1710 | 10700 | 63.4 |
