NUP252M Bearing Technical Specifications
-
- Bore Diameter(d) 260mm
- Outer Diameter (D) 480mm
- Width(B) 80mm
-
- Dynamic Load Rating (Cr) 1220kN
- Static Load Rating (Cor) 1800kN
-
- Weight 70kg
The NUP252M NUP Series Cylindrical Roller Bearing is designed for high radial load applications with bidirectional axial location. With dimensions of 260mm bore diameter, 480mm outer diameter, and 80mm width, this standard bearing delivers outstanding performance in demanding industrial environments. It features a dynamic load rating of 1220kN and static load rating of 1800kN for exceptional load capacity in heavy-duty applications. The inner ring without flanges, outer ring with two flanges design provides optimal performance for specific application requirements. Featuring machined brass cage for enhanced operational reliability.
Commonly used in: fixed bearingsbidirectional locating applicationsmachine tool spindlesindustrial gearboxes

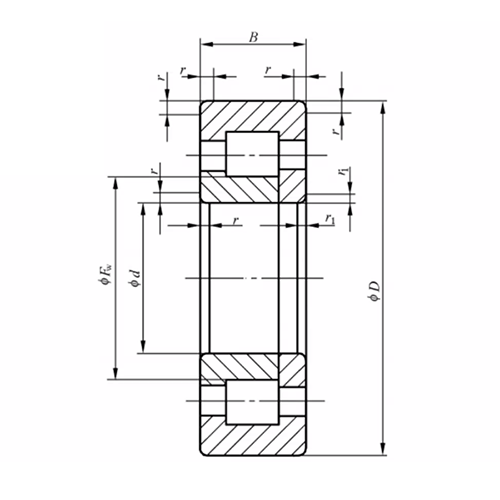

Bearing Type
Main Dimensions
260mm × 480mm × 80mm
| ID | 260mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 480mm | Outside diameter(O.D.) |
| B | 80mm | Width |
| Cr | 1220kN | Radial dynamic load rating |
| Cor | 1800kN | Radial static load rating |
| Mass | 70Kg | Weight |
Material
GCr15 Bearing Steel (Customizable materials: GCr15 Bearing Steel/GCr15SiMn/GCr18Mo/G20Cr2Ni4A)
Cage
Standard cage ( customizable on demand in steel, brass, machined brass, etc.)
Precision Rating
P0 (Customizable on demand in P0/P6/P5/P4 grades; higher precision for demanding applications)
Clearance
C3 clearance (customizable on demand in C0/C2/C3/C4/C5 specifications)
Brand
WJY / OEM Available
Origin
Quality Standard
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearings prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
