NF1072M Bearing Technical Specifications
- Dimensions
-
- Bore Diameter(d) 360 mm
- Outer Diameter (D) 540 mm
- Width(B) 82 mm
- Basic Load Rating
-
- Dynamic Load Rating (Cr) 1180 kN
- Static Load Rating (Cor) 2000 kN
-
- Weight 67.7 kg

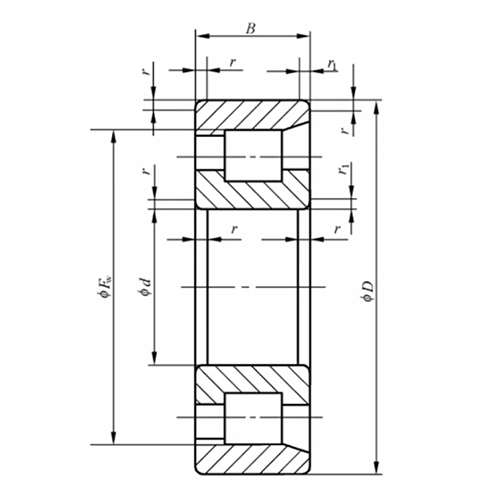

- Main Dimensions
- 360mm × 540mm × 82mm
| ID | 360 mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 540 mm | Outside diameter(O.D.) |
| B | 82 mm | Width |
| Cr | 1180 kN | Radial dynamic load rating |
| Cor | 2000 kN | Radial static load rating |
| Mass | 67.7 Kg | Weight |
- Brand
- WJY / OEM Available
- Origin
- Wafangdian, China (Global bearing manufacturing hub with 30+ years expertise)
- Precision Rating
- P0 (Standard) / P6 / P5 / P4 (Higher precision for demanding applications)
- Cage
- The default cage is stamped steel; Steel, Brass, and Machined Brass cages are optional, with other types not enumerated here.
- Material
-
- GCr15 Bearing Steel (Industry-standard for high load & fatigue resistance)
- GCr15SiMn
- GCr18Mo
- G20Cr2Ni4A
- Clearance
- C3 (standard), customizable to C0/C2/C4/C5
- Quality Standard
- ISO 9001:2015 Certified
NF Series Single Row Cylindrical Roller Bearing NF1072M. Featuring outer ring with single rib, inner ring with double ribs, it supports 1180 kN dynamic and 2000 kN static loads. Conveyor systems with reverse axial load requirements, suitable for medium-sized industrial equipment such as motors, fans, and pumps Specifically designed for special design features. The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearing prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
