NF1036X2WC/P6 Bearing Technical Specifications
-
- Bore Diameter(d) 180mm
- Outer Diameter (D) 280mm
- Width(B) 55mm
-
- Dynamic Load Rating (Cr) 380kN
- Static Load Rating (Cor) 475kN
-
- Weight 13kg

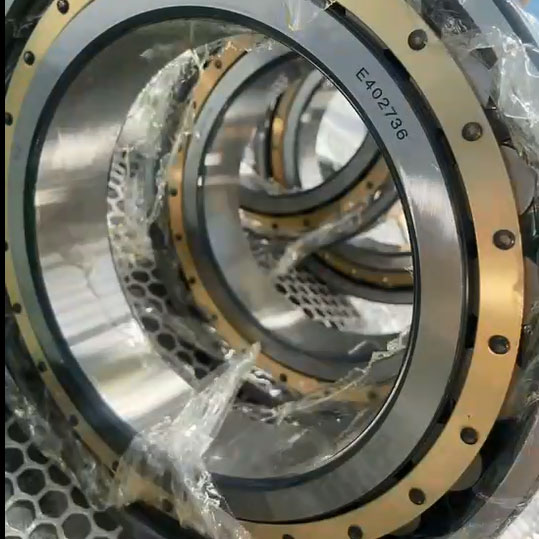

The NF1036X2WC/P6 (E402736) NF Series Cylindrical Roller Bearing is engineered for high radial load capacity and high-speed performance. With dimensions of 180mm bore diameter, 280mm outer diameter, and 55mm width, this precision bearing delivers exceptional rotational accuracy and rigid radial support in demanding industrial environments. It features a brass solid cage for enhanced strength and thermal stability, with a P6 accuracy rating for minimal runout and reliable operation.
Commonly used in: electric motorsmachine toolsgearboxeshigh-speed applications
Bearing Type
Main Dimensions
180mm × 280mm × 55mm
| ID | 180mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 280mm | Outside diameter(O.D.) |
| B | 55mm | Width |
| Cr | 380kN | Radial dynamic load rating |
| Cor | 475kN | Radial static load rating |
| Mass | 13Kg | Weight |
Material
GCr15 (Customizable materials: GCr15 Bearing Steel/GCr15SiMn/GCr18Mo/G20Cr2Ni4A)
Cage
Brass cage ( customizable on demand in steel, brass, machined brass, etc.)
Precision Rating
P6 (Customizable on demand in P0/P6/P5/P4 grades; higher precision for demanding applications)
Clearance
C3 (customizable on demand in C0/C2/C3/C4/C5 specifications)
Brand
WJY / OEM Available
Origin
Quality Standard
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearings prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
