FCD106156570 Bearing Technical Specifications
-
- Bore Diameter(d) 530mm
- Outer Diameter (D) 780mm
- Width(B) 570mm
-
- Dynamic Load Rating (Cr) 12700kN
- Static Load Rating (Cor) 32500kN
-
- Weight 954kg
The FCD106156570 FCD Series Multi Row Cylindrical Roller Bearing is designed for ultimate radial load capacity applications. With dimensions of 530mm bore diameter, 780mm outer diameter, and 570mm width, this extra heavy-duty bearing delivers outstanding performance in demanding industrial environments. It features a dynamic load rating of 12700kN and static load rating of 32500kN for ultimate load capacity in extreme conditions. The multi row cylindrical roller bearing design provides optimal performance for specific application requirements.
Commonly used in: heavy processing linesspecial industrial equipmentcustom machineryrolling millslarge industrial machinery
Bearing Type

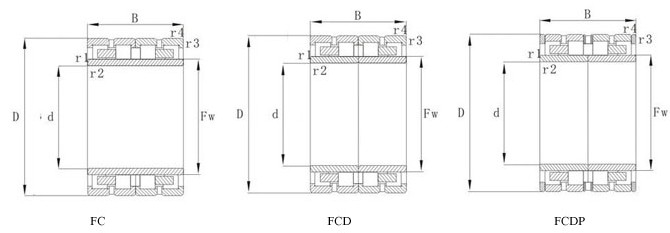

Main Dimensions
530mm × 780mm × 570mm
| Dimensions | d | 530mm |
|---|---|---|
| D | 780mm | |
| B | 570mm | |
| C | 570mm | |
| Basic Load Rating | Cr | 12700kN |
| Cor | 32500kN | |
| Weight | 954Kg | |
Material
GCr15 Bearing Steel (Customizable materials: GCr15 Bearing Steel/GCr15SiMn/GCr18Mo/G20Cr2Ni4A)
Cage
Standard cage ( customizable on demand in steel, brass, machined brass, etc.)
Clearance
C3 clearance (customizable on demand in C0/C2/C3/C4/C5 specifications)
Brand
WJY / OEM Available
Origin
Quality Standard
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearings prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
