608/1000 Bearing Technical Specifications

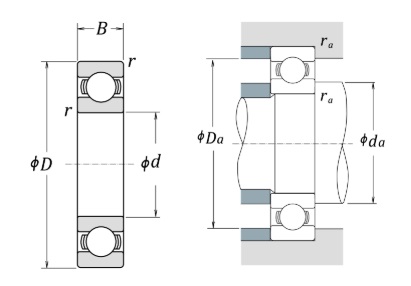

- Dimensions
-
- Bore Diameter(d) 1000 mm
- Outer Diameter (D) 1220 mm
- Width(B) 71 mm
- Basic Load Rating
-
- Dynamic Load Rating (Cr) 540 kN
- Static Load Rating (Cor) 1550 kN
-
- Weight 175 kg
- Main Dimensions
- 1000mm × 1220mm × 71mm
| ID | 1000 mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 1220 mm | Outside diameter(O.D.) |
| B | 71 mm | Width |
| Cr | 540 kN | Radial dynamic load rating |
| Cor | 1550 kN | Radial static load rating |
| Mass | 175 Kg | Weight |
Brand
WJY / OEM Available
Origin
Precision Rating
P0 (Standard) / P6 / P5 / P4 (Higher precision for demanding applications)
Cage
The default cage is stamped steel; Steel, Brass, and Machined Brass cages are optional, with other types not enumerated here.
Material
- GCr15 Bearing Steel (Industry-standard for high load & fatigue resistance)
- GCr15SiMn
- GCr18Mo
- G20Cr2Ni4A
Clearance
C3 (standard), customizable to C0/C2/C4/C5
Quality Standard
Deep Groove Ball Bearings (Model: 608/1000) are the most widely used type of rolling bearings, capable of carrying both radial and axial loads simultaneously. Manufactured from ISO 9001-certified high-carbon chromium bearing steel (GCr15), they undergo quenching and tempering treatments to ensure high hardness, good wear resistance, and fatigue resistance. With a bore diameter of 1000mm, outer diameter of 1220mm, and width of 71mm, these bearings offer a dynamic load capacity of 540kN and static load capacity of 1550kN. Making them suitable for large industrial equipment (e.g., port cranes, steel rolling mills). The bearing uses a Standard steel cage to ensure stable guidance of rolling elements and uniform load distribution during operation. All products comply with ISO standards and are suitable for global industrial and mechanical engineering applications. The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearing prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
