23020CA/W33 Bearing Technical Specifications
- Dimensions
-
- Bore Diameter(d) 100 mm
- Outer Diameter (D) 150 mm
- Width(B) 37 mm
- Basic Load Rating
-
- Dynamic Load Rating (Cr) 215 kN
- Static Load Rating (Cor) 400 kN
-
- Weight 2.5 kg
- Bearing Model
- 23020CA/W33
- Bearing Type

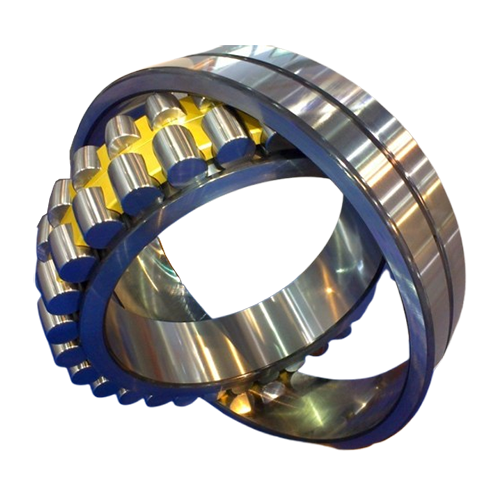

- Spherical Roller Bearings 230 Series
- Main Dimensions
- 100mm × 150mm × 37mm
- Brand
- WJY / OEM Available
- Origin
- Wafangdian, China (Global bearing manufacturing hub with 30+ years expertise)
- Precision Rating
- P0 (Standard) / P6 / P5 / P4 (Higher precision for demanding applications)
- Cage
- The default cage is stamped steel; Steel, Brass, and Machined Brass cages are optional, with other types not enumerated here.
- Material
-
- GCr15 Bearing Steel (Industry-standard for high load & fatigue resistance)
- GCr15SiMn
- GCr18Mo
- G20Cr2Ni4A
- Clearance
- C3 (standard), customizable to C0/C2/C4/C5
- Quality Standard
- ISO 9001:2015 Certified
Performance Advantages
- Self-aligning capabilities up to 3° to compensate for shaft misalignment
- Advanced alloy steel construction with enhanced fatigue resistance
- Optimized internal geometry reducing friction by up to 15%
- Special heat treatment process extending service life by 20%
23020CA/W33 Series Type Spherical Roller Bearings 230 Series Bearing, engineered for precision industrial applications. Featuring 100 mm bore, 150 mm OD, and 37 mm width, it supports 215 kN dynamic and 400 kN static ratings. The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearing prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
