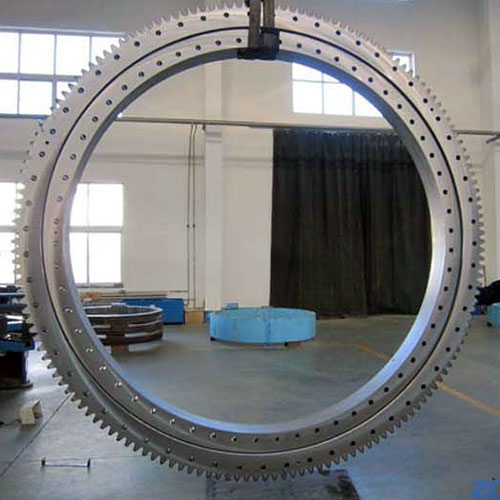

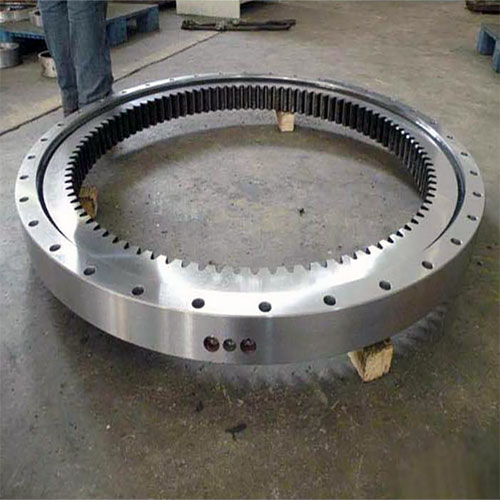

Single-Row Crossed Roller Slewing Bearings

Single-Row Crossed Roller Slewing Bearings Product Specifications

Basic parameters are displayed below. Click the details icon to view complete specifications including materials, tolerances, and application guidelines.

Designations			Dimensions			Bolt Hole Diameter						Structure dimensions					Gear parameters		Inner Gear		Outer Gear		Basic Load Rating	Weight
Non-gear	External gear	Internal gear	d	D	H	D1	D2	dn1 dn2	dm1 dm2	L	n	n1	D1	d1	H1	h	Da	z	b	m	da	z	Cr	Weight
111.50.3150	111.50.3150	113.50.3150	292	3376	134	3286	3014	45	M42	84	56	8	3147	3153	122	12	110	20	3476	171	2828	142	13800	2150
112.50.3150	112.50.3150	114.50.3150	292	3376	134	3286	3014	45	M42	84	56	8	3147	3153	122	12	110	22	3471.6	155	2824.8	129	13800	2150
111.25.500	111.25.500	113.25.500	398	602	75	566	434	18	M16	32	20	4	498	502	65	10	60	5	629	123	367	74	1040	80
112.25.500	112.25.500	114.25.500	398	602	75	566	434	18	M16	32	20	4	498	502	65	10	60	6	628.8	102	368.4	62	1040	80
111.25.560	111.25.560	113.25.560	458	662	75	626	494	18	M16	32	20	4	558	562	65	10	60	5	689	135	427	86	1160	90
112.25.560	112.25.560	114.25.560	458	662	75	626	494	18	M16	32	20	4	558	562	65	10	60	6	688.8	112	428.4	72	1160	90
111.25.630	111.25.630	113.25.630	528	732	75	696	564	18	M16	32	24	4	628	632	65	10	60	6	772.8	126	494.4	83	1300	100
112.25.630	112.25.630	114.25.630	528	732	75	696	564	18	M16	32	24	4	628	632	65	10	60	8	774.4	94	491.2	62	1300	100
111.25.710	111.25.710	113.25.710	608	812	75	776	644	18	M16	32	24	4	708	712	65	10	60	6	850.8	139	572.4	96	1490	110
112.25.710	112.25.710	114.25.710	608	812	75	776	644	18	M16	32	24	4	708	712	65	10	60	8	854.4	104	571.2	72	1490	110
111.28.800	111.28.800	113.28.800	678	922	82	878	722	22	M20	40	30	6	798	802	72	10	65	8	966.4	118	635.2	80	1850	170
112.28.800	112.28.800	114.28.800	678	922	82	878	722	22	M20	40	30	6	798	802	72	10	65	10	968	94	634	64	1850	170
111.28.900	111.28.900	113.28.900	778	1022	82	978	822	22	M20	40	30	6	898	902	72	10	65	8	1062.4	130	739.2	93	2090	190
112.28.900	112.28.900	114.28.900	778	1022	82	978	822	22	M20	40	30	6	898	902	72	10	65	10	1068	104	734	74	2090	190
111.28.1000	111.28.1000	113.28.1000	878	1122	82	1078	922	22	M20	40	36	6	998	1002	72	10	65	10	1188	116	824	83	2330	210
112.28.1000	112.28.1000	114.28.1000	878	1122	82	1078	922	22	M20	40	36	6	998	1002	72	10	65	12	1185.6	96	820.8	69	2330	210
111.28.1120	111.28.1120	113.28.1120	998	1242	82	1198	1042	22	M20	40	36	6	1118	1122	72	10	65	10	1298	127	944	95	2620	230
112.28.1120	112.28.1120	114.28.1120	998	1242	82	1198	1042	22	M20	40	36	6	1118	1122	72	10	65	12	1305.6	106	940.8	79	2620	230
111.32.1250	111.32.1250	113.32.1250	1110	1390	91	1337	1163	26	M24	48	40	5	1248	1252	81	10	75	12	1449.6	118	1048.8	88	3210	350
112.32.1250	112.32.1250	114.32.1250	1110	1390	91	1337	1163	26	M24	48	40	5	1248	1252	81	10	75	14	1453.2	101	1041.6	75	3210	350
