111.25.710 Bearing Overview
Image for reference only.
Core Parameters
- Main Dimensions 608mm × 812mm × 75mm
- Dynamic Load (Cr) kN
- Static Load (Cor) 1490 kN
- Weight 110 kg
Bearing Type
Bearing Model
Bolt Hole Diameter
| D1 | 776 mm |
|---|---|
| D2 | 644 mm |
| dn1 dn2 | 18 |
| dm1 dm2 | M16 |
| L | 32 mm |
| n | 24 mm |

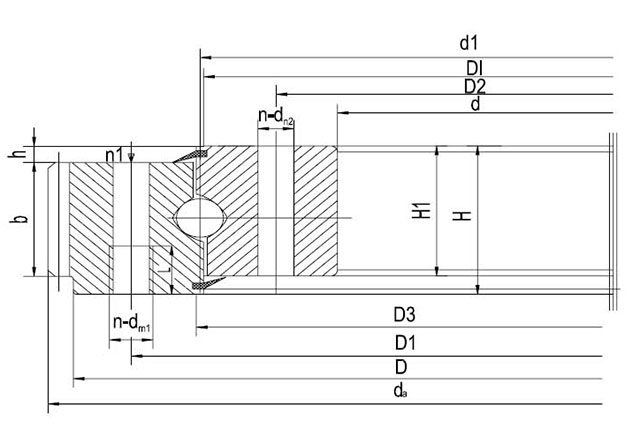

Structure dimensions
| n1 | 4 mm |
|---|---|
| D1 | 708 mm |
| d1 | 712 mm |
| H1 | 65 mm |
| h | 10 mm |
Gear
| b | 60 mm | Tooth width |
|---|---|---|
| m | 60 | Module |
| da | 572.4 mm | Tooth tip diameter of external gear ring |
| z | 96 | Number of teeth of external gear |
Material
GCr15 Premium Bearing Steel (hardened and precision ground raceways for crane applications) (Customizable: GCr15 / GCr15SiMn / GCr18Mo / G20Cr2Ni4A)
Cage
Integral crossed roller separator blocks with gear clearance for heavy torque transmission (Customizable: Steel / Brass / Machined Brass)
Precision Rating
P6 (Industrial precision for internal gear crane bearings) (P0 / P6 / P5 / P4 available)
Clearance
Heavy-duty industrial clearance (C3 equivalent) for crane and lifting equipment (C0 / C2 / C3 / C4 / C5 available)
Brand
WJY / OEM Available
Origin
Wafangdian, China (30+ years bearing manufacturing hub)
Quality Standard
OEM & Customization
Custom materials, cages, precision & clearance available.
Product Description
Single Row Crossed Roller Slewing Bearing 111.25.710 is part of the 111 Series (External gear type). Engineered for heavy industrial applications, it features a compact single row design with crossed cylindrical rollers arranged at 90° angles designed to handle simultaneous radial, axial, and moment loads with high precision and rigidity. The external gear teeth on the outer ring enables reliable heavy-load drive integration for large-scale motion control systems.
With specification code 25.710, this heavy-duty bearing has dimensions of 608mm bore diameter, 812mm outer diameter, and 75mm width. As a compact heavy-duty slewing bearing, it is manufactured from premium grade GCr15 bearing steel with precision-ground raceways, ensuring exceptional durability and long service life in harsh industrial environments.
Key Features: Compact drive arrangement, Protected gear teeth, High torque transmission, Low backlash.
Typical Applications: tower crane slewing rings, offshore crane turntables, mobile harbor crane systems.
Delivery & Service
Delivery Time
In-stock: 3–5 days; OEM/ODM: 20–35 days.
Shipping Methods
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Pricing Information
Prices vary by precision & material. Please submit an inquiry for best quote.
