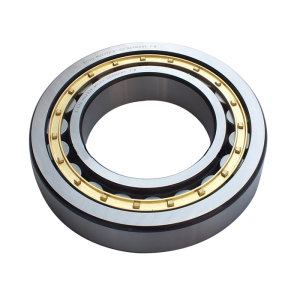

Single Row Cylindrical Roller Bearings offer high radial load capacity, low friction, and are suitable for high-speed applications. Designs: N, NU, NJ, NUP, NF (with or without ribs). Made from premium GCr15 steel, cages available in brass or steel.
Single Row Cylindrical Roller Bearings Product Specifications
Basic parameters are displayed below. Click the details icon to view complete specifications including materials, tolerances, and application guidelines. Download Catalog
Structure Type
| Inquiry | Bearing Model | Dimensions | Basic Load Rating | Weight | |||
|---|---|---|---|---|---|---|---|
| d | D | B | Cr | Cor | |||
| NU2938Q1 | 190 | 260 | 42 | 347 | 685 | 6.98 | |
| N1034X1M | 170 | 265 | 42 | 330 | 500 | 7.97 | |
| NU1034M | 170 | 260 | 42 | 299 | 440 | 8.23 | |
| NJ1034M | 170 | 260 | 42 | 299 | 440 | 8.47 | |
| NU1036M | 180 | 280 | 46 | 418 | 565 | 10.4 | |
| NU2944Q1 | 220 | 300 | 48 | 407 | 755 | 10.5 | |
| NJ2944M | 220 | 300 | 48 | 407 | 750 | 10.8 | |
| NU1038M | 190 | 290 | 46 | 413 | 640 | 10.9 | |
| NU2344M/C3 | 220 | 460 | 145 | 2040 | 2780 | 12 | |
| NF1036X2WC/P6 | 180 | 280 | 55 | 380 | 475 | 13 | |
| N232E | 160 | 290 | 48 | 517 | 695 | 13.9 | |
| NU232E | 160 | 290 | 48 | 517 | 695 | 14 | |
| NJ232M | 160 | 290 | 48 | 495 | 655 | 14.2 | |
| N232M | 160 | 290 | 48 | 495 | 655 | 14.3 | |
| NJ232E | 160 | 290 | 48 | 517 | 695 | 14.3 | |
| NU1040M | 200 | 310 | 51 | 468 | 705 | 14.3 | |
| NU232EQ1 | 160 | 290 | 48 | 517 | 695 | 14.3 | |
| NU232M | 160 | 290 | 48 | 495 | 655 | 14.4 | |
| NU2860M | 300 | 380 | 48 | 450 | 1000 | 14.5 | |
| NUP232E | 160 | 290 | 48 | 517 | 695 | 14.5 | |
