NNCF2660168-2RS Bearing Technical Specifications
- Dimensions
-
- Bore Diameter(d) 130 mm
- Outer Diameter (D) 300.02 mm
- Width(B) 170 mm
- Basic Load Rating
-
- Dynamic Load Rating (Cr) 1510 kN
- Static Load Rating (Cor) 2770 kN
-
- Weight 70 kg
| Basic Information | ||
|---|---|---|
| Design No. (Model) | 5.2 | Design identification number or model code |
| Weight (Mass) | 70 kg | Mass (M) of the bearing, measured in kilograms (kg) |

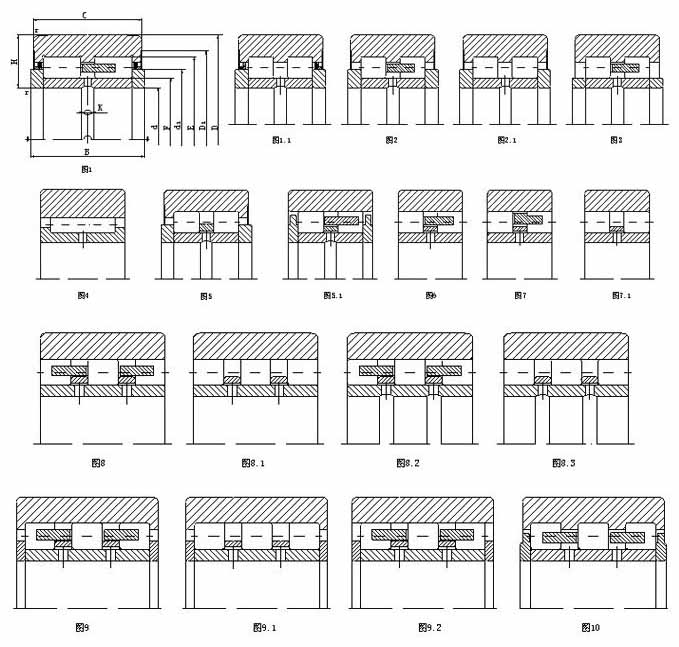

| Boundary Dimensions (mm) | ||
| d (Bore Diameter) | 130 mm | Internal diameter of inner ring (ISO standard symbol: d) |
| D (Outer Diameter) | 300.02 mm | External diameter of outer ring (ISO standard symbol: D) |
| B (Width) | 170 mm | Overall width of bearing (ISO standard symbol: B) |
| C (Effective Width) | 168 mm | Effective width of roller set (ISO standard symbol: C) |
| H (Height) | 85.01 mm | Overall height of bearing assembly |
| d1 (Inner Step Diameter) | mm | Diameter of inner ring step for axial location |
| D1 (Outer Step Diameter) | mm | Diameter of outer ring step for housing fit |
| E (Mounting Dimension) | 218.4 mm | Effective bearing center distance for mounting |
| F (Positioning Dimension) | 159.4 mm | Axial positioning dimension for bearing seats |
| rmin (Chamfer Radius) | 1 mm | Minimum fillet radius for chamfered edges |
| K (Roller Factor) | 6.5 | Factor for effective roller length calculation |
| N* (Roller Quantity) | Number of rollers in bearing assembly | |
| Basic Load Rating (kN) | ||
| Cr (Dynamic Load) | 1510 kN | Basic dynamic load rating (ISO 281) |
| Cor (Static Load) | 2770 kN | Basic static load rating (ISO 281) |
| Cr (Roller) | 1040 kN | Dynamic load rating for roller elements |
| Cor (Roller) | 1810 kN | Static load rating for roller elements |
| Cr (Radial Max) | 795 kN | Maximum radial dynamic load capacity |
| Cor (Radial Max) | 1130 kN | Maximum radial static load capacity |
Superior Material & Durability
Manufactured from premium G20Cr2Ni4A carburized steel with advanced heat treatment:
- Carburized layer depth ≥2.0mm
- Surface hardness HRC60-64
- Core toughness HRC30-40
- 40% longer service life
P4-Grade Precision Engineering
Meets ISO P4/ABEC 9 standards:
- Dimensional tolerance ±2μm
- Roundness error ≤0.5μm
- Cylindricity error ≤1μm
- Surface roughness Ra≤0.025μm
- 30% reduced friction
Rigorous Quality Control
- ISO 9001 certified manufacturing
- Full dimensional inspection reports
- Hardness gradient testing
- Dynamic performance evaluation
- 100% factory inspection
Typical Applications
Metal Processing & Steel Industry
- Hot/cold rolling mill support bearings
- Ladle turret bearings
- Coiler/straightener machine bearings
Mining Equipment
- Crusher bearings
- Ball mill bearings
- Mining drill bearings
Construction Machinery
- Excavator slewing bearings
- Crane bearings
- Port machinery bearings
Power Generation
- Industrial turbine bearings
- Wind turbine gearbox bearings
- Hydroelectric generator bearings
NNCF Series Backing Bearing NNCF2660168-2RS. NNCF series backing bearing, with its own structural and performance features. Inner diameter: 130mm, inner diameter within 100 - 200mm, suitable for medium - sized mechanical equipment with corresponding installation space requirements. Precision grade: precision grade P4, ensuring high - accuracy rotational performance for applications requiring strict running accuracy. Material: made of G20Cr2Ni4A material, featuring excellent wear resistance, toughness and fatigue strength, suitable for harsh working conditions. It can provide reliable backing support in relevant mechanical equipment, ensuring stable operation under corresponding loads and working conditions. The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.
