GX100S Bearing Technical Specifications
- Dimensions
-
- Bore Diameter(d) 100 mm
- Outer Diameter (D) 210 mm
- Width(B) 51 mm
- Basic Load Rating
-
- Dynamic Load Rating (Cr) 1300 kN
- Static Load Rating (Cor) 6470 kN
-
- Weight 10.9 kg
- Bearing Model
- GX100S
- Bearing Type
- Spherical Plain Thrust Bearings

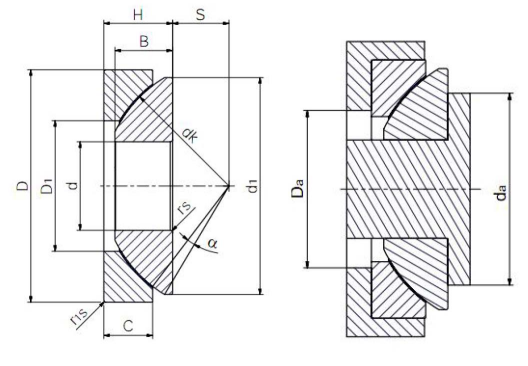

| Bearing No. | ||
|---|---|---|
| Dimensions | d | 100 mm Inside diameter(I.D.) |
| D | 210 mm Outside diameter(O.D.) | |
| B | 51 mm thickness | |
| C | 46 mm Thrust - direction Dimension | |
| H | 59 mm Overall Height | |
| dk | 222 mm Mounting Reference Diameter | |
| s | 45 mm Mounting Feature Size | |
| d1maz | 198 mm Max. Shaft Diameter (Fit) | |
| D1max | 127 mm Min. Housing Bore (Fit) | |
| A | 15 mm Axial Feature Size | |
| a | 4 mm Chamfer | |
| Chamfer dimensions | rsmin | 1.1 mm Min. Outer Ring Chamfer |
| r1smini | 1.1 mm Min. Inner Ring Chamfer | |
| Mounting dimensions | Damin | 141 mm Min. Shaft Diameter |
| damax | 155 mm Max. shaft size (no interference) | |
| Basic Load Rating | Cr | 1300 kN Radial dynamic load rating |
| Cor | 6470 kN Radial static load rating | |
| Weight | 10.9 kg Mass | |
- Brand
- WJY / OEM Available
- Origin
- Wafangdian, China (Global bearing manufacturing hub with 30+ years expertise)
- Quality Standard
- ISO 9001:2015 Certified
Spherical Plain Thrust Bearings (Model: GX100S) are designed for high axial load applications. Corresponding alternative model: GX100S. With an inner diameter of 100mm, outer diameter of 210mm, and axial height of 51mm, it features designed for moderate axial loads with enhanced corrosion resistance. open design suitable for clean environments. Dynamic load capacity: 1300kN | Static load capacity: 6470kN | Weight: 10.9kg. Ideal for precision machinery, robotics, and light industrial equipment, this bearing ensures reliable performance under heavy axial loads and misalignment. The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.
Delivery Time
- For in-stock own-brand bearings, Dalian JinYu HuaYang guarantees shipment arrangement within 3–5 days after payment confirmation.
- For OEM/ODM orders, the production and delivery lead time for a full container typically ranges from 20–35 days (depending on order complexity).
Shipping Methods
Ocean Freight/Land Transport
Warranty
We provide 12-month warranty, extendable to 18 months via authorized JinYu distributors.
Pricing Information
Bearing prices vary by precision grade, raw material quality, and market dynamics. For customized quotes, please submit an inquiry via our contact form.
