Tandem Thrust Bearings

Hide Bearing Type Catalog

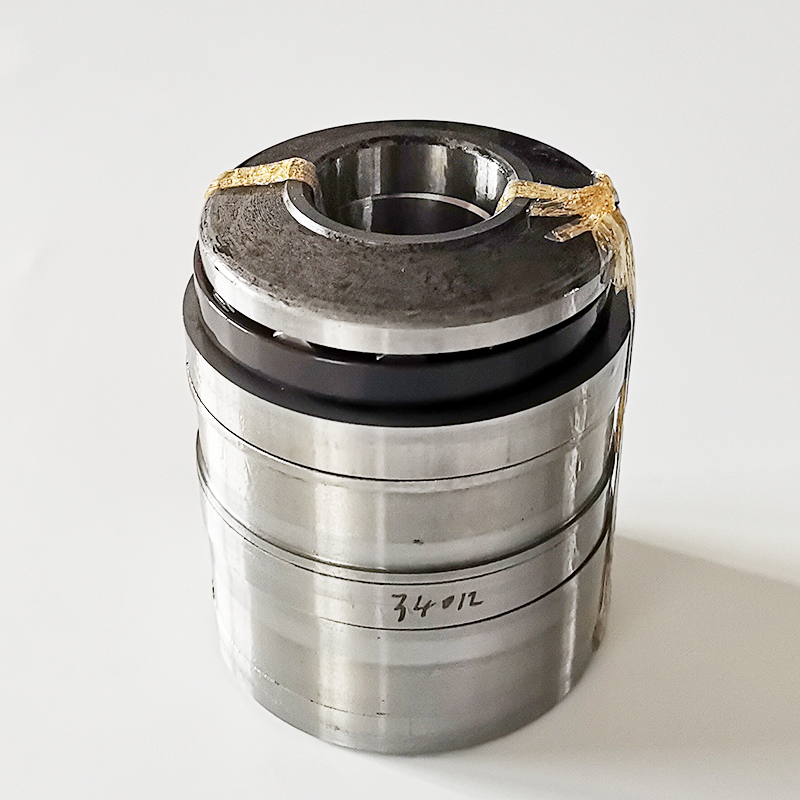

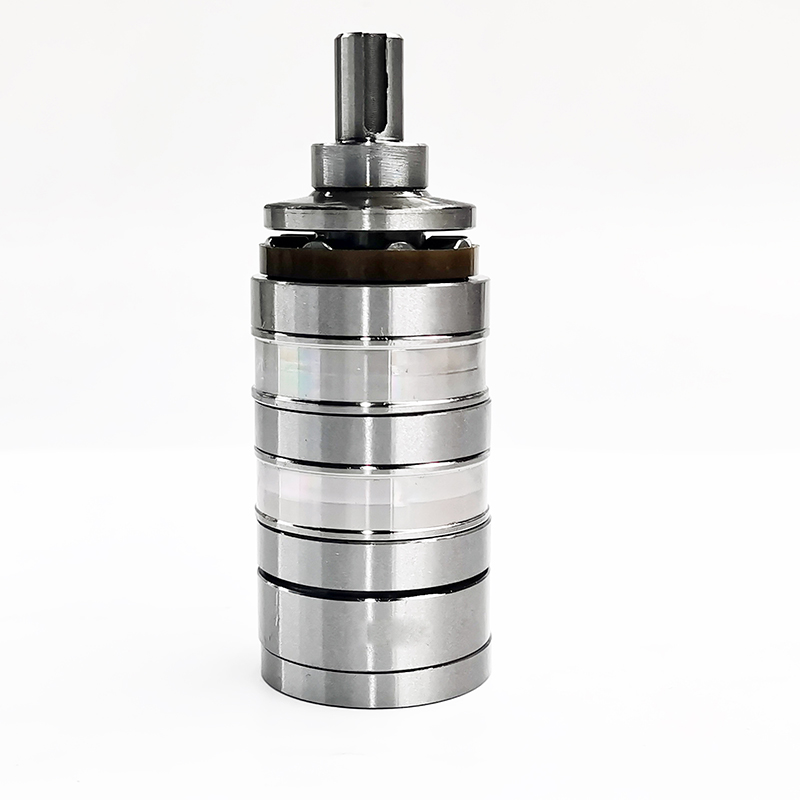

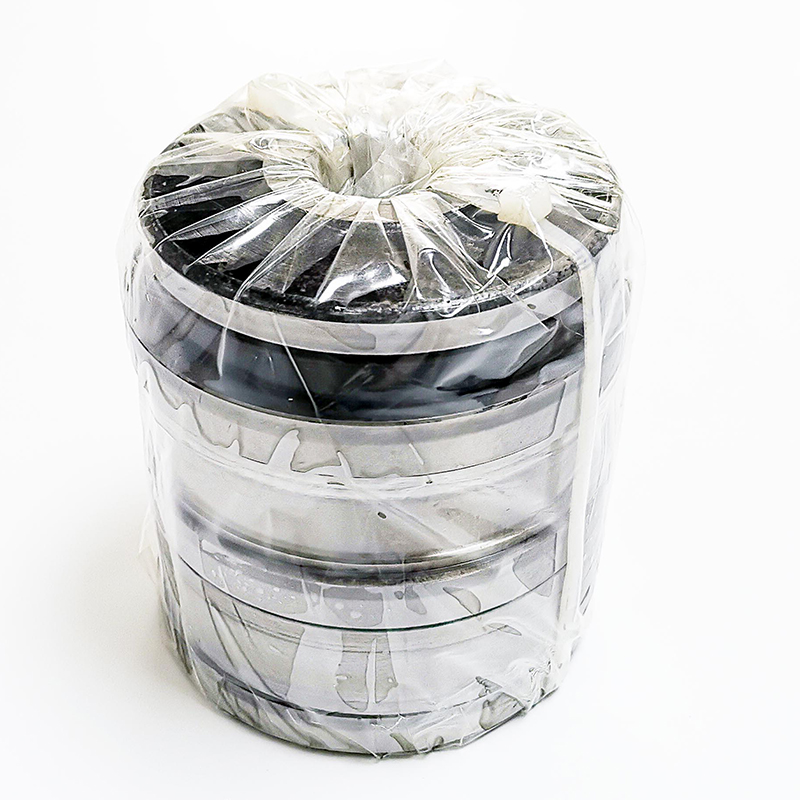

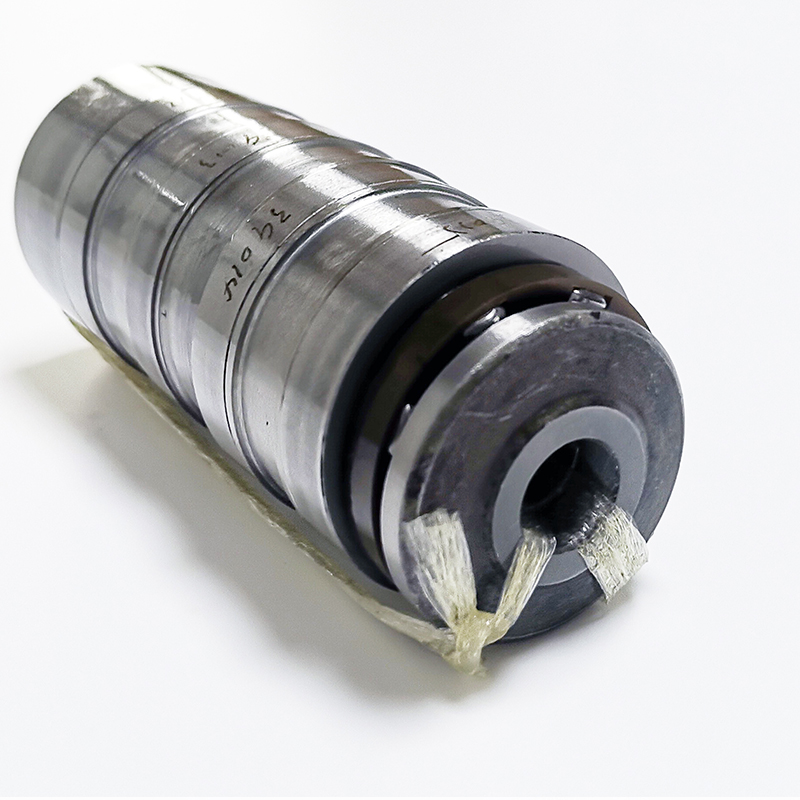

Tandem Thrust Bearings feature a multi-row roller design, combining multiple thrust bearing units in axial series. Typically configured with 2, 3, or more rows of cylindrical rollers or spherical rollers, they distribute load efficiently and significantly enhance axial load capacity.

This optimized multi-row roller arrangement delivers ultra-high load support in compact spaces, making it ideal for critical industrial applications including heavy machinery (mining and metallurgical equipment), high-precision machine tools (CNC spindles and rotary tables), and energy equipment (wind turbine gearboxes and hydraulic turbines).

Tandem Thrust Bearings Product Specifications

Basic parameters are displayed below. Click the details icon to view complete specifications including materials, tolerances, and application guidelines. Download Catalog

Technical Specifications of Tandem Thrust Bearings
Details	Inquiry	Bearing Model		Dimensions				Row	Basic Load Rating		Weight
Details	Inquiry	New	Old	d	D	H	H1	Row	Ca	Coa	Weight
		M3CT420	T3AR420	4	20	32	32	3	17	42	0.053
		M5CT420	T5AR420	4	20	54	54	5	26	69	0.086
		M6CT420	T6AR420	4	20	65	65	6	29	83	0.106
		M6CT424	T6AR424	4	24	62	60	6	42	112	0.16
		M6CT424X1	T6AR424X1	4	24	62	60	6	42	112	0.16
		M4CT527	T4AR527	5	27	52	51	4	35.2	83.6	0.155
		M4CT527E	T4AR527E	5	27	52	51	4	49	121	0.142
		M5CT527	T5AR527	5	27	65	64	5	59	151	0.21
		M6CT527	T6AR527	5	27	78	77	6	65	173	0.22
		M4CT645E	T4AR645E	6	45	92	92	4	151	444	0.72
		M6CT630	T6AR630	6	30	88	89	6	73	208	0.321
		M4CT1037	T4AR1037	10	37	78	79	4	91	275	0.486
		M5CT1037E	T5AR1037E	10	37	98	99	5	109	343	0.487
		M4CT1134	T4AR1134	11	34	52.5	52.5	4	53	180	0.25
		M3CT1242E	T3AR1242E	12	42	62.4	62.4	3	99	286	0.41
		M4CT1242	T4AR1242	12	42	83.5	82.5	4	124	382	0.62
		M5CT1242	T5AR1242	12	42	104.6	103.6	5	148	477	0.776
		M5CT1242E	T5AR1242E	12	42	104.6	103	5	148	477	0.75
		M6CT1242E	T6AR1242E	12	42	125.7	124.7	6	170	573	0.9
		M4CT1858	T4AR1858	18	58	100.5	101	4	203	729	1.426

1 2 3 … 5 Next
