Thrust spherical roller bearings are heavy-duty thrust bearings designed to accommodate high axial loads while also supporting radial loads. Their spherical roller design enables excellent load-carrying capacity, high operating reliability, and self-aligning capability, making them suitable for demanding industrial applications where shaft deflection or housing misalignment may occur.
What Are Thrust Spherical Roller Bearings?
Unlike standard thrust bearings that mainly support axial loads, thrust spherical roller bearings use asymmetrical spherical rollers arranged at an angle to the bearing axis. This internal geometry allows the bearing to handle combined radial and axial loads while maintaining smooth operation under heavy-duty conditions.
The spherical raceway design provides self-aligning performance, allowing the bearing to compensate for angular misalignment between the shaft and housing. This feature helps reduce edge stress, improve load distribution, and extend bearing service life.

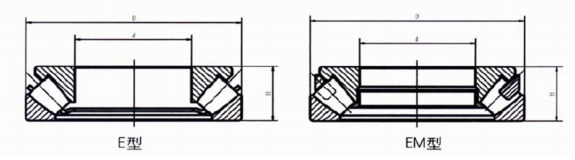

E Type and EM Type Thrust Spherical Roller Bearings
Our factory manufactures thrust spherical roller bearings in E and EM designs, providing reliable solutions for heavy industrial applications.
- E Type: Features a pressed steel cage design with optimized internal geometry for improved load capacity and operating performance.
- EM Type: Equipped with a machined brass cage, providing enhanced strength, durability, and suitability for severe operating conditions.
Self-Aligning Capability and Permissible Misalignment
One of the key advantages of thrust spherical roller bearings is their ability to accommodate angular misalignment. During operation, shaft deflection, housing deformation, or installation errors can cause alignment problems. The spherical roller design allows the bearing to compensate for these conditions while maintaining stable performance.
The permissible misalignment depends on the bearing series and applied load. When the equivalent static load is less than 0.05 Coa (where Coa represents the basic static axial load rating), the maximum allowable angular misalignment is approximately:
| Bearing Series | Maximum Permissible Misalignment |
|---|---|
| 292 Series | 1.5° |
| 293 Series | 2.0° |
| 294 Series | 2.5° |
Applications of Thrust Spherical Roller Bearings
Due to their high axial load capacity, self-aligning ability, and reliable performance under heavy loads, thrust spherical roller bearings are widely used in:
- Hydraulic turbines and generators
- Industrial gearboxes
- Mining and construction equipment
- Heavy-duty pumps and compressors
- Marine propulsion systems
- Steel and energy industry machinery
Why Choose WJY Bearing Thrust Spherical Roller Bearings?
Our factory manufactures thrust spherical roller bearings in E and EM designs, providing reliable solutions for heavy industrial equipment. With professional bearing production capabilities and strict quality control, we support global customers with customized bearing solutions and export services.
