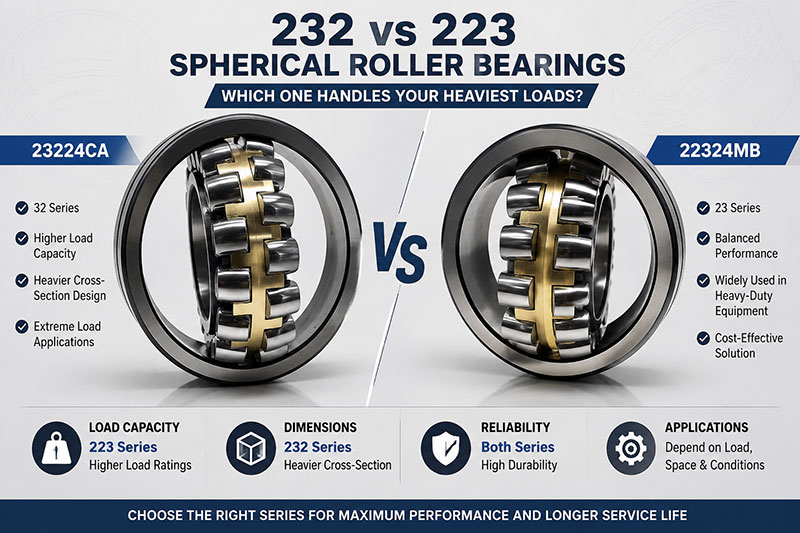

When selecting a spherical roller bearing for heavy-duty equipment, engineers often compare 223 series and 232 series. Both are widely used in demanding industrial applications, but they are designed for different load requirements, space conditions, and operating environments.
This guide compares 223 vs 232 spherical roller bearings in terms of dimensions, load ratings, design differences, applications, and selection considerations to help you choose the right bearing solution.
Series Overview: 223 and 232 Spherical Roller Bearings
Both 223 and 232 belong to ISO dimension series spherical roller bearings. The main difference is their cross-sectional design and load capacity characteristics.
| Series | ISO Dimension Series | Design Characteristics | Typical Applications |
|---|---|---|---|
| 223 Series | 23 Series | Balanced heavy-duty design with high load capacity and wide industrial availability | Mining equipment, vibrating screens, conveyors, crushers |
| 232 Series | 32 Series | Heavier cross-section design with higher load capacity and increased rigidity | Large mills, heavy machinery, extreme load applications |
For more information about each product family, see:
223 vs 232 Dimensions and Load Capacity Comparison
The biggest selection difference appears when comparing bearings with the same bore diameter. The 232 series generally provides a heavier internal design and higher load capacity, while the 223 series offers a proven solution for a wide range of heavy-duty applications.
| Bore Size | 223 Series | 232 Series | Selection Insight |
|---|---|---|---|
| 100 mm | 22320CA/W33 | 23220CA/W33 | 232 provides higher load capability for demanding conditions |
| 120 mm | 22324CA/W33 | 23224CA/W33 | Selection depends on load, housing space and operating conditions |
| 140 mm | 22328CA/W33 | 23228CA/W33 | Both are common solutions for heavy industrial equipment |
| 160 mm | 22332CA/W33 | 23232CA/W33 | 232 is preferred when additional load margin is required |
| 200 mm | 22340CA/W33 | 23240CA/W33 | Suitable for high-load mining and industrial applications |
| 240 mm | 22348CA/W33 | 23248CA/W33 | Commonly used in large rotating equipment |
| 260 mm | 22352CA/W33 | 23252CA/W33 | 232 provides additional safety margin under heavy loads |
| 300 mm | 22360CA/W33 | 23260CA/W33 | Used for large industrial machinery and critical applications |
Application Comparison: When to Choose 223 or 232?
When to Choose 223 Series
- General heavy-duty equipment such as vibrating screens, conveyors and crushers
- Balanced performance with proven reliability and availability
- Cost-effective solution for continuous industrial operation
- Suitable when loads are high but within standard operating ranges
When to Choose 232 Series
- Extreme load applications requiring higher capacity
- Critical equipment where unexpected downtime must be minimized
- Large rotating machinery such as mills and heavy industrial equipment
- Applications requiring higher rigidity and additional safety margin
Application Summary: 223 vs 232 Series
| Industry / Equipment | Recommended Series | Reason |
|---|---|---|
| Vibrating Screens | 223 Series | Common choice for high vibration and continuous operation |
| Large Crushers | 232 Series | Higher load capacity for impact and shock loads |
| Mining Conveyors | 223 Series | Reliable solution for sustained heavy radial loads |
| Rolling Mill Equipment | 232 Series | Suitable for heavy loads and demanding operating conditions |
| SAG / AG Mills | 232 Series | Designed for extreme loads in critical rotating equipment |
| Wind Turbine Main Shafts | 232 Series | High reliability requirements under combined loads |
| Heavy Gearboxes | 223 Series | Widely used standard heavy-duty bearing solution |
For heavy industrial applications such as rolling mills, mining equipment and large machinery, selecting the correct spherical roller bearing series can significantly influence equipment reliability and maintenance costs.
Cage Designs and Suffix Options
Both 223 and 232 spherical roller bearings are available with different cage designs and suffix configurations to meet various operating requirements.
| Suffix | Cage Design | Typical Application |
|---|---|---|
| CC | Two-piece steel cage | High load capacity and general industrial applications |
| CA | One-piece brass cage | Shock loads and demanding operating conditions |
| MB | Brass cage guided by inner ring | Heavy loads and high temperature environments |
| E / EA | Reinforced steel cage design | High radial loads and improved load distribution |
| MA | Brass cage guided by outer ring | Precision industrial applications |
Common Suffixes
- W33 — Lubrication groove and lubrication holes on the outer ring
- K — Tapered bore design for adapter sleeve mounting
- C3 / C4 — Increased radial clearance for different operating conditions
- Example: 23228CAW33C4 indicates a 232 series spherical roller bearing with CA brass cage, W33 lubrication feature and C4 clearance.
223 vs 232 Spherical Roller Bearing Selection Guide
- You need a proven industry-standard heavy-duty bearing
- The operating loads are high but within normal heavy-duty ranges
- Cost efficiency and availability are important
- The application includes vibrating screens, conveyors or crushers
- Maximum load capacity and higher safety margin are required
- Equipment failure would cause significant downtime
- The application involves large mills or extreme industrial loads
- Higher rigidity is required for demanding operating conditions
Frequently Asked Questions
What is the difference between 223 and 232 spherical roller bearings?
The main difference is their ISO dimension series and design characteristics. 232 series spherical roller bearings generally have a heavier cross-section and higher load capacity, while 223 series provides a balanced heavy-duty solution for many industrial applications.
Can a 232 series bearing replace a 223 series bearing?
Not always. Although both are spherical roller bearings, their boundary dimensions are different. Replacement should consider bore diameter, outside diameter, width, housing design and load requirements before making a decision.
Why choose 232 series over 223 series spherical roller bearings?
232 series is selected when higher load capacity, increased rigidity and additional operating safety margin are required, especially for large mills, mining equipment and other critical applications.
How do I select between 223 and 232 spherical roller bearings?
Bearing selection depends on load conditions, available installation space, operating speed, lubrication conditions and equipment reliability requirements. Engineers should compare bearing dimensions and load ratings before selecting a replacement.
