Spherical plain thrust bearings are specialized sliding bearings designed to support heavy axial loads while accommodating angular misalignment. Their unique spherical contact geometry allows reliable load transmission under demanding operating conditions where shaft deflection, mounting errors, or structural deformation may occur.
Widely used in hydraulic systems, construction machinery, mining equipment, lifting devices and heavy industrial machinery, spherical plain thrust bearings provide an effective solution for applications requiring both high thrust load capacity and self-aligning capability.
What Is a Spherical Plain Thrust Bearing?
A spherical plain thrust bearing is a self-aligning bearing designed primarily to carry axial (thrust) loads. Unlike conventional thrust bearings that require precise alignment, spherical plain thrust bearings incorporate spherical sliding contact surfaces that allow limited angular movement between mating components.
This design helps compensate for shaft misalignment, installation inaccuracies and structural deformation while maintaining stable load distribution across the bearing surfaces.

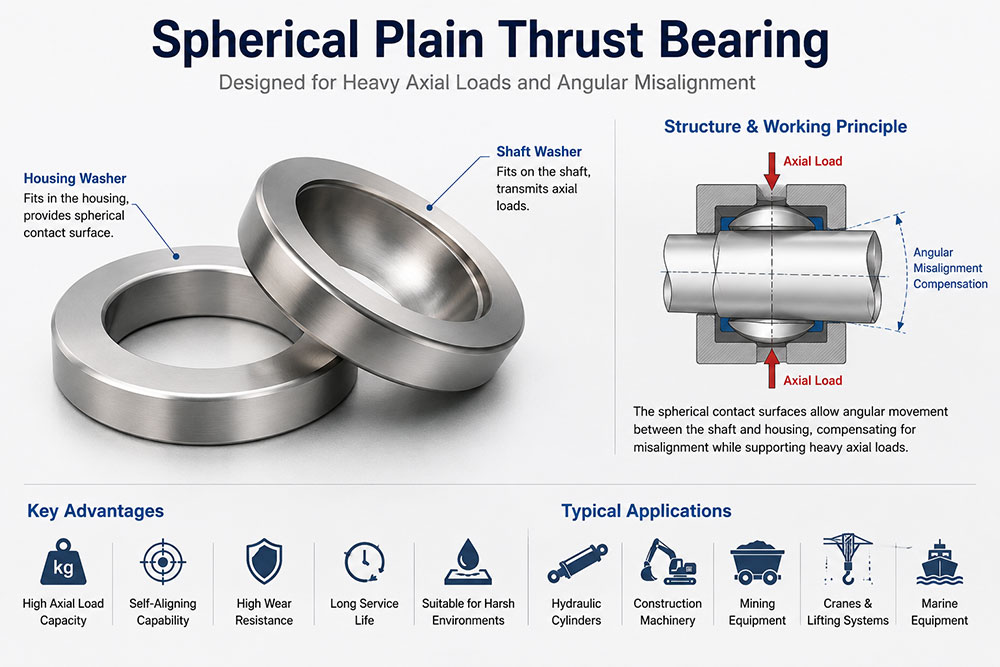

Structure of a Spherical Plain Thrust Bearing
A typical spherical plain thrust bearing consists of two primary bearing rings with matching spherical sliding surfaces.
Housing Washer
Supports the bearing within the housing and provides the mating spherical surface.
Shaft Washer
Transfers axial loads from the shaft into the bearing assembly.
The spherical sliding contact between these components enables the bearing to adjust automatically when alignment conditions change during operation.
How Does a Spherical Plain Thrust Bearing Work?
When axial force is applied along the shaft axis, the load is transmitted through the spherical sliding contact surfaces. As the shaft or housing experiences angular displacement, the bearing automatically adjusts its contact position while maintaining load support.
This self-aligning capability reduces localized stress concentrations, minimizes edge loading and improves overall service life.
Main Advantages
- High axial load carrying capacity
- Self-aligning capability
- Excellent impact resistance
- Reduced stress concentration
- Long service life
- Suitable for harsh environments
Typical Applications
Spherical plain thrust bearings are commonly used in equipment where high thrust loads and angular misalignment occur simultaneously.
- Hydraulic cylinders
- Construction machinery
- Mining equipment
- Cranes and lifting systems
- Steel mill machinery
- Marine equipment
Spherical Plain Thrust Bearings vs Radial Spherical Plain Bearings
| Feature | Thrust Type | Radial Type |
|---|---|---|
| Main Load Direction | Axial Load | Radial Load |
| Self-Aligning Capability | Yes | Yes |
| Typical Series | GX Series | GE / GEH / GEP / GEEW / GEC |
| Common Applications | Hydraulic & Lifting Equipment | Construction & Mining Machinery |
Can Spherical Plain Thrust Bearings Be Customized?
Yes. For heavy industrial applications, customized spherical plain thrust bearings are often required to meet specific load capacities, dimensional requirements and operating conditions.
- Special dimensions
- High-load designs
- Corrosion-resistant materials
- Application-specific configurations
- Custom engineering solutions
Conclusion
Spherical plain thrust bearings provide an effective solution for applications requiring high axial load capacity and angular misalignment compensation.
For detailed dimensions, load ratings and available models, browse our GX Series Spherical Plain Thrust Bearings catalog.
