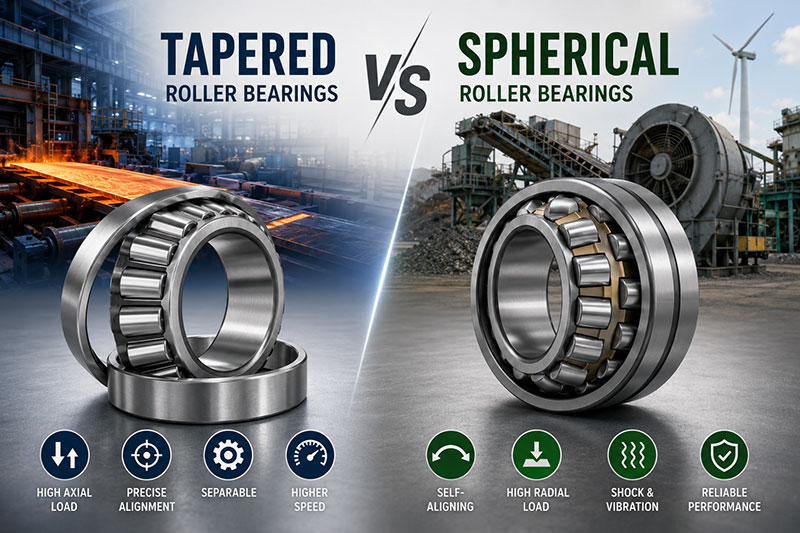

Tapered roller bearings and spherical roller bearings are two of the most widely used bearing types in heavy industry. While they may appear similar at first glance, each has distinct advantages depending on load direction, misalignment requirements, and operating conditions.
This guide breaks down the structural differences, load handling characteristics, and typical applications for each type — helping you make the right selection for your equipment.
Tapered Roller Bearings
Best for: Combined radial & high axial loads
Misalignment tolerance: Low (~0.05° – 0.1°)
Separable: Yes (cone and cup)
Typical speed: Moderate to high
Spherical Roller Bearings
Best for: Heavy radial loads + misalignment
Misalignment tolerance: High (up to 1.5° – 2°)
Separable: No (non-separable)
Typical speed: Moderate
Head-to-Head Comparison
| Feature | Tapered Roller Bearings | Spherical Roller Bearings |
|---|---|---|
| Roller geometry | Tapered (conical) rollers | Barrel-shaped (spherical) rollers |
| Load direction | Combined radial + high axial (one direction) | Primarily radial + moderate axial (both directions) |
| Axial load capacity | Very high (single row handles one direction) | Moderate (sufficient for most industrial uses) |
| Misalignment compensation | Very limited (requires precise alignment) | Excellent – self-aligning capability |
| Typical applications | Steel mills, gearboxes, mining crushers, wheel hubs | Vibrating screens, conveyors, fans, paper mills, wind turbines |
When to Choose Tapered Roller Bearings
Tapered roller bearings excel in applications where high combined loads (radial + axial) are present and axial load dominates in one direction. Their separable design allows independent mounting of cone and cup, which simplifies maintenance in complex assemblies.
- Gearboxes: Helical and bevel gear shafts experience high thrust loads.
- Steel rolling mills: Work and backup rolls require extreme axial rigidity. Rolling mill bearings →
- Mining crushers: Jaw and cone crushers generate heavy shock loads. mining bearings.
- Automotive wheel hubs: Pre-adjusted tapered roller units.
When to Choose Spherical Roller Bearings
Spherical roller bearings are the preferred choice when shaft misalignment or housing deflection is unavoidable. Their self-aligning feature reduces stress on the bearing and surrounding components, extending equipment life.
- Vibrating screens & feeders: High vibration and inevitable structural flex.
- Industrial fans & blowers: Long shafts with deflection under load.
- Paper mill rolls: Thermal expansion and roll bending.
- Conveyor pulleys: Misaligned shafts in long conveyor systems.
Quick Selection Guide
✅ Choose Tapered if:
- High axial load capacity is required
- Precise shaft alignment can be maintained
- Separable mounting is preferred for maintenance
- Moderate to high speed operation
✅ Choose Spherical if:
- Shaft misalignment or housing deflection exists
- High radial load with unknown axial direction
- Vibration or shock loads are present
- Simplified housing design is preferred (self-aligning)
Common Misconceptions
Not true. Spherical roller bearings have lower axial load capacity per size and are not separable, which may complicate assembly.
Very limited misalignment (typically <0.1°) is acceptable, but spherical bearings are far superior in this regard.
Typical Performance Range
| Parameter | Tapered Roller Bearings | Spherical Roller Bearings |
|---|---|---|
| Dynamic load rating (relative) | Very high for combined loads | Very high for radial loads |
| Static load rating | High | Extremely high |
| Misalignment angle | ≤ 0.1° (typical) | ≤ 1.5° – 2° (typical) |
| Speed capability | Good | Moderate |
