N1892M Technical Specifications
| Bearing Type | Single Row Cylindrical Roller Bearings |
|---|---|
| d (ID) | 460mm |
| D (OD) | 580mm |
| B (Width) | 56mm |
| Dynamic Load (Cr) | 795kN |
| Static Load (Cor) | 1720kN |
| Mass | 37.2Kg |
| Material | GCr15 Bearing Steel |
| Cage | Standard cage |
| Clearance | C3 clearance |
| Precision | P0 |
Product Description

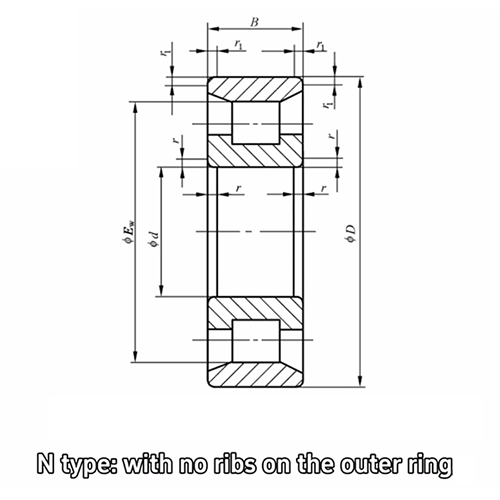

The N1892M N Series Cylindrical Roller Bearing is designed for high radial load applications with maximum flexibility. With dimensions of 460mm bore diameter, 580mm outer diameter, and 56mm width, this heavy-duty bearing delivers outstanding performance in demanding industrial environments. It features a dynamic load rating of 795kN and static load rating of 1720kN for high load capacity in demanding applications. The inner ring without flanges, outer ring without flanges design provides optimal performance for specific application requirements. Featuring machined brass cage for enhanced operational reliability.
Commonly used in: free end applicationsnon-locating positionslarge machine toolsindustrial gearboxes
Delivery & Service
Brand
WJY / OEM Available
Quality Standard
Origin
Wafangdian, China (30+ years manufacturing hub)
Delivery Time
In-stock: 3–5 days; OEM/ODM: 20–35 days.
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port / Customer Port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & mixed batch welcome
Pricing
Prices vary by precision & material.
