M2CT145385 Technical Specifications
| Bearing Type | Tandem Thrust Bearings | Category |
|---|---|---|
| Bearing Model | M2CT145385 | Main model number |
| Old Code | T2AR145385 | Legacy model reference |

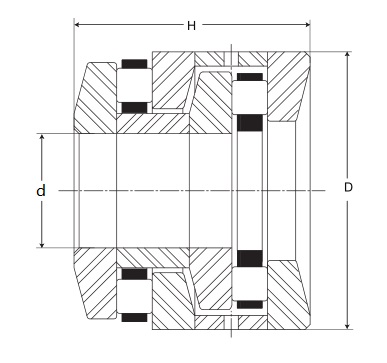

| Dimensions | ||
| ID | 145mm | Inside diameter (I.D.) |
| OD | 385mm | Outside diameter (O.D.) |
| H | 233mm | Thickness / Height |
| H1 | 227mm | Additional height dimension |
| Row | 2 | Number of rolling element rows |
| Performance Ratings | ||
| Cr | 3773kN | Radial dynamic load rating |
| Cor | 19958kN | Radial static load rating |
| Mass | 147.7Kg | Weight |
| Specifications | ||
| Material | High carbon chromium bearing steel (GCr15 / AISI 52100) | |
| Cage | Machined brass cage / steel cage depending on load requirements | |
| Clearance | Pre-set axial clearance or controlled preload based on application conditions | |
| Precision | ISO Class P0 (Normal), P6 and P5 precision grades available | |
Product Description
M2CT145385 (Formerly: T2AR145385) Tandem Thrust Bearings are designed to handle high axial loads in one direction efficiently. Featuring a multi-row configuration for increased axial capacity, these bearings are ideal for heavy-duty industrial applications requiring high stiffness and reliability. With a bore diameter of 145 mm, outer diameter of 385 mm, and height of 233-227 mm, they offer excellent load distribution and durability under extreme axial forces. Manufactured from high-quality bearing steel, these bearings ensure long service life and stable performance in demanding environments.
Key Features
- 2-row tandem structure for high axial load capacity
- Uniform load distribution to prolong service life
- Compact radial size for narrow gearbox installation space
- Detachable design for easy inspection and replacement
- Low heat generation and stable continuous operation
- High rigidity to resist heavy impact load
Applications
- Twin screw plastic extruder
- Plastic granulation & recycling equipment
- Heavy extrusion machinery
- Industrial hydraulic press
- Heavy load reduction gearbox
Service
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port or other nominated port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & small orders welcome
Image for reference only.
