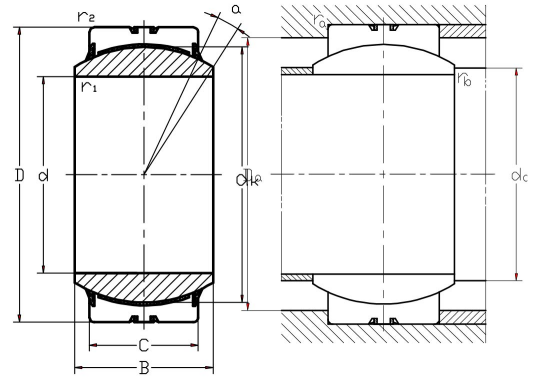

GEP110FS Technical Specifications
| ID | 110 mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 160 mm | Outside diameter(O.D.) |
| B | 78 mm | Width |
| C | 74 mm | |
| dk | 145 mm | |
| b | mm | |
| M | mm | |
| r1(min) | 1 mm | |
| r2(min) | 1 mm | |
| da(min) | mm | Install dimensions |
| da(max) | mm | Install dimensions |
| Da(min) | mm | Install dimensions |
| Da(max) | mm | Install dimensions |
| ra(max) | mm | Install dimensions |
| rb(max) | mm | Install dimensions |
| a°≈ | 2 ° | Tilting angle |
| Cr | 1600 kN | Radial dynamic load rating |
| Cor | 3200 kN | Radial static load rating |
| Mass | 5.35 kg | Weight |
| Clearance | mm | Radial internal clearance (CN) Also available in groups C2,C3 |
Product Description
Radial Spherical Plain Bearing GEP110FS is a Maintenance-Free Radial Spherical Plain Bearing featuring spherical plain design with self-aligning capability. Engineered for heavy radial loads, shock loads, and angular misalignment compensation, it incorporates Maintenance-free PTFE liner for enhanced performance in demanding industrial applications.
With an inner diameter of 110mm, outer diameter of 160mm, and width of 78mm, this medium-size radial spherical plain bearing is manufactured from high-quality GCr15. The robust construction ensures reliable operation even under extreme load conditions and angular misalignment up to 3°-5°.
Key Features: Lubrication-free design, PTFE liner, Long service life, Contamination resistance. It offers a dynamic load rating of 1600kN and static load rating of 3200kN, making it suitable for heavy-duty industrial applications.
Typical Applications: food processing equipment, textile machinery, packaging machinery, clean room equipment.
Service
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port or other nominated port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & small orders welcome
Image for reference only.
