GEH90ET Bearing Overview
Image for reference only.
Core Parameters
- Main Dimensions 90mm × 150mm × 85mm
- Dynamic Load (Cr) 1070 kN
- Static Load (Cor) 2140 kN
- Weight 5.4 kg

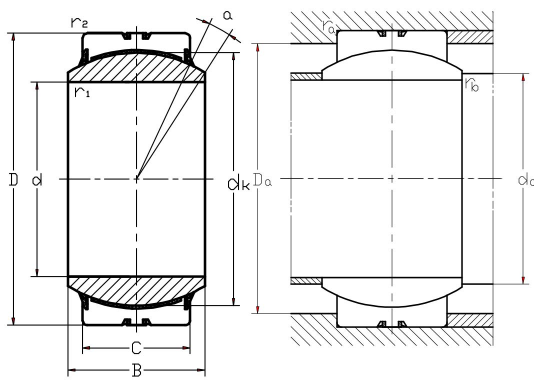

Bearing Type
| ID | 90 mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 150 mm | Outside diameter(O.D.) |
| B | 85 mm | Width |
| C | 55 mm | |
| dk | 130 mm | |
| b | 11.5 mm | |
| M | 5 mm | |
| r1(min) | 1 mm | |
| r2(min) | 1 mm | |
| da(min) | 98.2 mm | Install dimensions |
| da(max) | 98.4 mm | Install dimensions |
| Da(min) | 131 mm | Install dimensions |
| Da(max) | 143.2 mm | Install dimensions |
| ra(max) | 1 mm | Install dimensions |
| rb(max) | 1 mm | Install dimensions |
| a°≈ | 15 ° | Tilting angle |
| Cr | 1070 kN | Radial dynamic load rating |
| Cor | 2140 kN | Radial static load rating |
| Mass | 5.4 kg | Weight |
| Clearance | mm | Radial internal clearance (CN) Also available in groups C2,C3 |
|---|
Material
GCr15 Bearing Steel (hardened raceways) with carbon steel housing (Customizable: GCr15 / GCr15SiMn / GCr18Mo / G20Cr2Ni4A)
Cage
Enhanced steel liner for heavy loads (Customizable: Steel / Brass / Machined Brass)
Precision Rating
P6 (Heavy-duty precision) (P0 / P6 / P5 / P4 available)
Clearance
C3 (Standard industrial clearance) (C0 / C2 / C3 / C4 / C5 available)
Brand
WJY / OEM Available
Origin
Wafangdian, China (30+ years bearing manufacturing hub)
Quality Standard
OEM & Customization
Custom materials, cages, precision & clearance available.
Product Description
Radial Spherical Plain Bearing GEH90ET is a Heavy Duty Radial Spherical Plain Bearing featuring spherical plain design with self-aligning capability. Engineered for heavy radial loads, shock loads, and angular misalignment compensation, it incorporates Enhanced load capacity design for enhanced performance in demanding industrial applications.
With an inner diameter of 90mm, outer diameter of 150mm, and width of 85mm, this medium-size radial spherical plain bearing is manufactured from high-quality GCr15. The robust construction ensures reliable operation even under extreme load conditions and angular misalignment up to 3°-5°.
Key Features: Extra heavy-duty design, Increased wall thickness, Enhanced load capacity, Robust construction. It offers a dynamic load rating of 1070kN and static load rating of 2140kN, making it suitable for heavy-duty industrial applications.
Typical Applications: cranes and hoists, offshore equipment, steel mill machinery, heavy-duty hydraulic cylinders.
Delivery & Service
Delivery Time
In-stock: 3–5 days; OEM/ODM: 20–35 days.
Shipping Methods
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Pricing Information
Prices vary by precision & material. Please submit an inquiry for best quote.
