GEEW100ES Technical Specifications

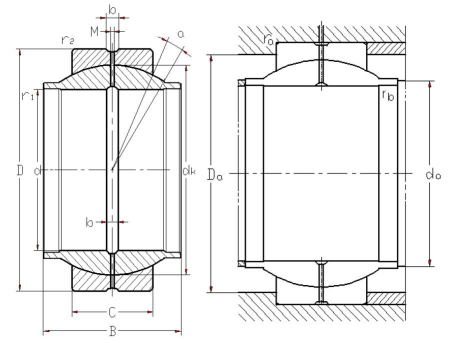

| ID | 100 mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 150 mm | Outside diameter(O.D.) |
| B | 100 mm | Width |
| C | 55 mm | |
| dk | 130 mm | |
| b | mm | |
| M | mm | |
| r1(min) | 1 mm | |
| r2(min) | 1 mm | |
| da(min) | mm | Install dimensions |
| da(max) | mm | Install dimensions |
| Da(min) | 123 mm | Install dimensions |
| Da(max) | 113 mm | Install dimensions |
| ra(max) | mm | Install dimensions |
| rb(max) | mm | Install dimensions |
| a°≈ | 4 ° | Tilting angle |
| Cr | 607 kN | Radial dynamic load rating |
| Cor | 3030 kN | Radial static load rating |
| Mass | 4.79 kg | Weight |
| Clearance | 0.085-0.165 mm | Radial internal clearance (CN) Also available in groups C2,C3 |
Product Description
Radial Spherical Plain Bearing GEEW100ES is a Wide Inner Ring Radial Spherical Plain Bearing featuring spherical plain design with self-aligning capability. Engineered for heavy radial loads, shock loads, and angular misalignment compensation, it incorporates Steel/steel sliding contact for enhanced performance in demanding industrial applications.
With an inner diameter of 100mm, outer diameter of 150mm, and width of 100mm, this medium-size radial spherical plain bearing is manufactured from high-quality GCr15. The robust construction ensures reliable operation even under extreme load conditions and angular misalignment up to 3°-5°.
Key Features: Wide inner ring, Increased stability, High rigidity, Reduced stress concentration. It offers a dynamic load rating of 607kN and static load rating of 3030kN, making it suitable for heavy-duty industrial applications.
Typical Applications: excavator booms, bulldozer arms, forestry machinery, material handling equipment.
Service
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port or other nominated port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & small orders welcome
Image for reference only.
