GAC110F Bearing Overview
Image for reference only.
Core Parameters
- Main Dimensions 110mm × 170mm × 38mm
- Dynamic Load (Cr) 810 kN
- Static Load (Cor) 1620 kN
- Weight 3.68 kg
Bearing Type

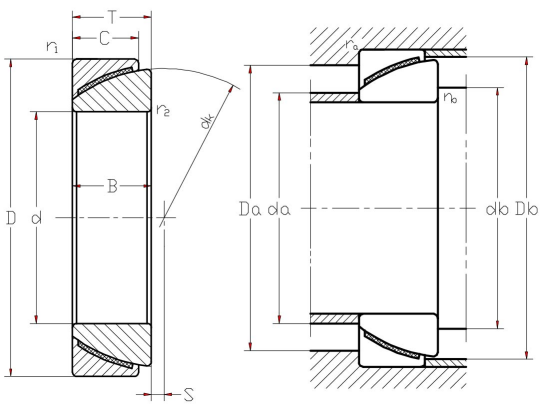

Technical Specifications
| ID | 110mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 170mm | Outside diameter(O.D.) |
| B | 38mm | Width |
| C | 34mm | |
| S | 13mm | |
| dk | 155mm | |
| r1(min) | 2mm | |
| r2(min) | 2mm | |
| da(max) | Install dimensions | |
| Da(min) | Install dimensions | |
| db(max) | Install dimensions | |
| Db(min) | Install dimensions | |
| ra(max) | Install dimensions | |
| rb(max) | Install dimensions | |
| a°≈ | 2° | Tilting angle |
| Cr | 810kN | Radial dynamic load rating |
| Cor | 1620kN | Radial static load rating |
| Mass | 3.68kg | Weight |
Cage
(Customizable: Steel / Brass / Machined Brass)
Precision Rating
(P0 / P6 / P5 / P4 available)
Clearance
Brand
WJY / OEM Available
Origin
Wafangdian, China (30+ years bearing manufacturing hub)
Quality Standard
OEM & Customization
Custom materials, cages, precision & clearance available.
Product Description
Angular Contact Spherical Plain Bearings (Model: GAC110F) are designed for combined radial and axial load applications. Corresponding alternative model: GAC110F. With an inner diameter of 110mm, outer diameter of 170mm, and width of 38mm, it features single-row design with optimized contact angle for high radial and axial load capacity. open design suitable for clean environments. Designed for optimal balance between radial and axial load handling. Dynamic load capacity: 810kN | Static load capacity: 1620kN | Weight: 3.68kg. Ideal for precision machinery, automation systems, and light industrial equipment, this bearing ensures reliable performance under complex loading conditions. The manufacturer offers a Standard 12-month warranty extendable up to 18 months through authorized Jinyu distributors. OEM solutions available.
Delivery & Service
Delivery Time
In-stock: 3–5 days; OEM/ODM: 20–35 days.
Shipping Methods
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Pricing Information
Prices vary by precision & material. Please submit an inquiry for best quote.
