FCDP142204710 Technical Specifications

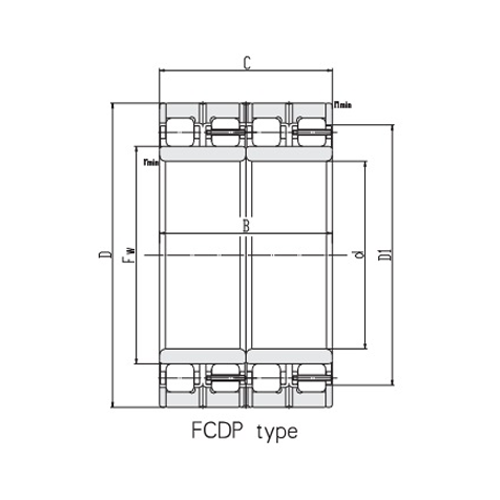

| Bearing Type | Multi Row Cylindrical Roller Bearings |
|---|---|
| Bore Diameter(d) | 710mm |
| Outer Diameter (D) | 1020mm |
| Total Inner Assembly Width (B) | 710mm |
| Outer Ring Width (C) | 710mm |
| Dynamic Load Rating (Cr) | 19500kN |
| Static Load Rating (Cor) | 49700kN |
| Limiting Speed (Grease) | |
| Limiting Speed (Oil) | |
| Weight | 1940Kg |
| Material | High-carbon chromium bearing steel (GCr15 / AISI 52100 equivalent) |
| Cage Type | Machined brass cage |
| Precision Rating | P0 / Normal grade |
| Clearance | C3 clearance |
Product Description
FCDP142204710 is an FCDP-series four-row cylindrical roller bearing with dimensions of 710×1020×710 mm. It is an optimized design based on heavy-duty FCD bearings, offering improved load distribution and enhanced performance in large-scale rolling mills, heavy plate mills and ultra-heavy metallurgical equipment.
FCDP series bearings are engineered for continuous heavy-load operation, shock resistance and extended service life in demanding industrial environments.
Key Features
- FCDP-series four-row cylindrical roller bearing with optimized internal structure.
- High radial load capacity with improved load distribution.
- Separable inner ring design for easier mounting and maintenance.
- Stable performance under heavy radial load and low-speed conditions.
- Suitable for continuous operation in medium-to-large rolling mill systems.
- Reinforced for heavy-duty rolling mills such as hot strip and plate mills with high shock load conditions.
- Designed for extreme-load metallurgical applications in large-scale rolling equipment.
Applications
- Rolling mill work roll positions
- Rolling mill backup roll positions
- Steel plant rolling equipment
- Metallurgical production machinery
- Continuous rolling mill stands
- Section mills and bar mills
- Heavy-duty steel processing lines
- Hot strip mills
- Plate mills
- Blooming and slabbing mills
- Ultra-heavy rolling mill applications
Can FCDP142204710 be customized?
Yes. FCDP142204710 can be customized with different clearance grades, cage designs, material options, heat treatment processes and application-specific requirements.
What is the lead time for FCDP142204710 bearing?
For large-size FCDP cylindrical roller bearings (bore size ≥400 mm), lead time is typically 25–40 days depending on production schedule and manufacturing requirements.
Delivery & Service
Delivery Time
In-stock items: 3–5 working days; Bulk orders: 7–15 working days.
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port or other nominated port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & small orders welcome
