FC4054170/C4 Technical Specifications
| Bearing Type | Multi Row Cylindrical Roller Bearings |
|---|---|
| Bore Diameter(d) | 200mm |
| Outer Diameter (D) | 270mm |
| Total Inner Assembly Width (B) | 170mm |
| Outer Ring Width (C) | 170mm |
| Dynamic Load Rating (Cr) | 916kN |
| Static Load Rating (Cor) | 2670kN |
| Limiting Speed (Grease) | |
| Limiting Speed (Oil) | |
| Weight | 28.7Kg |
| Material | High-carbon chromium bearing steel (GCr15 / AISI 52100 equivalent) |
| Cage Type | Precision-machined brass cage |
| Precision Rating | P0 / Normal grade |
| Clearance | C4 radial clearance |
Product Description
FC4054170/C4 is a professional FC-series four-row cylindrical roller bearing with standard overall dimensions of inner diameter 200mm, outer diameter 270mm, and width 170mm, with a net weight of 28.7kg. This P0 precision grade bearing adopts high-carbon chromium bearing steel (GCr15 / AISI 52100 equivalent) and precision-machined brass cage, featuring high rigidity, wear resistance and stable mechanical performance.
Equipped with standard C4 large radial clearance, the bearing is specially optimized for harsh working conditions such as high temperature, heavy load and continuous operation. It has a dynamic load rating (Cr) of 916kN and a static load rating (Cor) of 2670kN. The four-row roller structure provides ultra-high radial load capacity, while the separable structural design greatly simplifies installation, disassembly and daily maintenance. It is widely used in medium and large rolling mills, steel plant rolling equipment and metallurgical heavy-duty machinery, being a core component for continuous steel rolling production lines.
Key Features
- FC type four-row cylindrical roller bearing designed for rolling mill roll neck applications.
- Four-row roller arrangement provides exceptionally high radial load carrying capacity.
- Separable design allows convenient mounting, dismounting, and maintenance.
- High rigidity construction helps maintain rolling accuracy under heavy operating loads.
- Optimized for high-speed rolling mill operation with reduced friction and heat generation.
- Suitable for medium-to-large rolling mill stands operating under continuous production conditions.
- C4 large radial internal clearance, adaptable to high-temperature and heavy-load harsh working conditions.
Applications
- Rolling mill work roll positions
- Rolling mill backup roll positions
- Steel plant rolling equipment
- Metallurgical production machinery
- Continuous rolling mill stands
- Section mills and bar mills
- Heavy-duty steel processing lines
Related Products
Can FC4054170/C4 be customized?
What do the suffixes in FC4054170/C4 indicate?
Service
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port or other nominated port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & small orders welcome

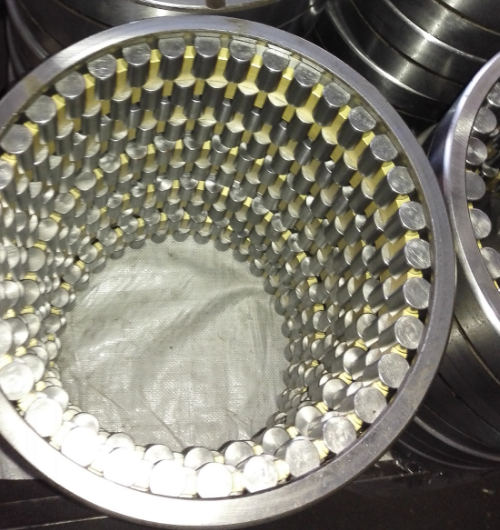

Image for reference only.
