C792726EK Technical Specifications
| Bearing Type | Multi Row Cylindrical Roller Bearings |
|---|---|
| Bore Diameter(d) | 130mm |
| Outer Diameter (D) | 300mm |
| Total Inner Assembly Width (B) | 172mm |
| Outer Ring Width (C) | 172mm |
| Dynamic Load Rating (Cr) | 1430kN |
| Static Load Rating (Cor) | 2600kN |
| Limiting Speed (Grease) | |
| Limiting Speed (Oil) | |
| Weight | 74.8Kg |
| Material | G20Cr2Ni4A Carburized Bearing Steel / GCr15 Optional |
| Cage Type | Solid Machined Brass Cage |
| Precision Rating | P0 Standard Grade, P6/P5 High Precision Optional |
| Clearance | C3 Standard Radial Clearance, Custom Clearance Available |
Product Description
C792726EK is a custom non-standard three-row cylindrical roller backing bearing exclusively designed for 20-high Sendzimir cluster cold rolling mills. It has no official ISO standard equivalent model, featuring precise dimensions of inner diameter 130mm, outer diameter 300mm, width 172mm and a net weight of 74.8kg, serving as the core high-rigidity support component for precision thin strip rolling equipment.
This heavy-duty backing bearing offers a dynamic load rating (Cr) of 1430kN and a static load rating (Cor) of 2600kN, with standard radial clearance of 0.060~0.085mm and axial clearance of 0.15~0.30mm, fully adapting to long-term continuous heavy impact rolling conditions. Adopting a solid machined brass cage, outer ring integrated lubrication grooves and double O-ring sealing structure, it achieves stable lubrication operation and excellent dustproof and anti-pollution performance.
Manufactured with high-quality G20Cr2Ni4A carburized bearing steel (GCr15 optional), the bearing features superior surface hardness, fatigue resistance and wear resistance. It supports P0 standard precision and optional P6/P5 high precision grades, with strictly controlled radial runout within 0.005mm. The matched bearing set with consistent tolerance ensures ultra-high rolling precision, widely applied in precision stainless steel strips, thin foil and high-end metallurgical rolling production lines.
Key Features
- Custom three-row cylindrical roller backing bearing, non-standard mill exclusive specification with no universal ISO equivalent model.
- Professionally customized for 20-high Sendzimir cluster cold rolling mills for ultra-precision thin strip production.
- High-rigidity three-row roller structure delivers extreme radial load capacity and stable supporting performance.
- Precision solid machined brass cage prevents deformation and ensures consistent roller operation stability.
- Outer ring integrated lubrication grooves plus double O-ring sealing structure for durable lubrication and effective dust prevention.
- Ultra-high precision control with radial runout Kea ≤0.005mm to guarantee thin strip rolling accuracy.
- High-strength carburized bearing steel construction provides outstanding wear resistance and heavy impact load tolerance.
Applications
- 20-high Sendzimir cluster cold rolling mills
- Precision thin strip steel rolling production lines
- Mill support roll assembly systems
- Ultra-precision metallurgical rolling equipment
- Thin foil and stainless steel rolling machinery
Service
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port or other nominated port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & small orders welcome

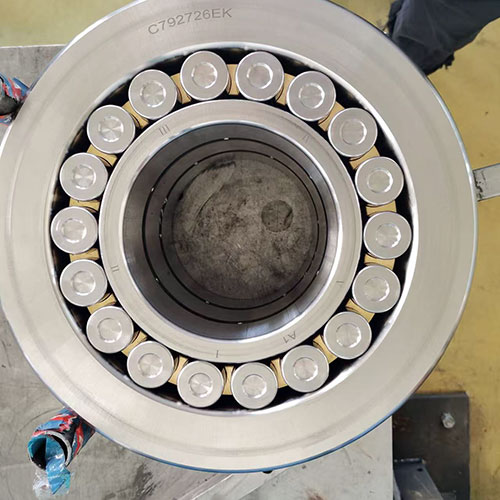

Image for reference only.
