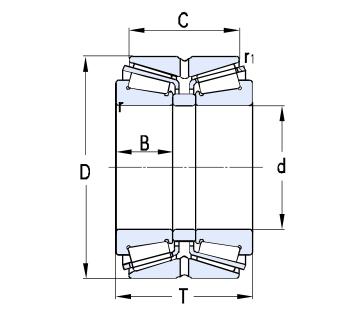

352122 Technical Specifications
| Bearing Type | Double Row Tapered Roller Bearings |
|---|---|
| d (ID) | 110mm |
| D (OD) | 180mm |
| B (Width of one row) | 42mm |
| T(Total Width) | 95mm |
| Dynamic Load (Cr) | 495kN |
| Static Load (Cor) | 900kN |
| Mass | 9.1Kg |
| Grease speed | |
| Oil speed | |
| Material | GCr15 / GCr15SiMn / G20Cr2Ni4A (Customizable) |
| Cage | Steel Sheet Pressed Window Cage (Standard), Brass Machined Cage (Optional) |
| Clearance | C0 (Standard), C1, C2, C3, C4, C5 (Customizable) |
| Precision | P0 (Standard), P6, P5, P4 (High Precision Customizable) |
Product Description

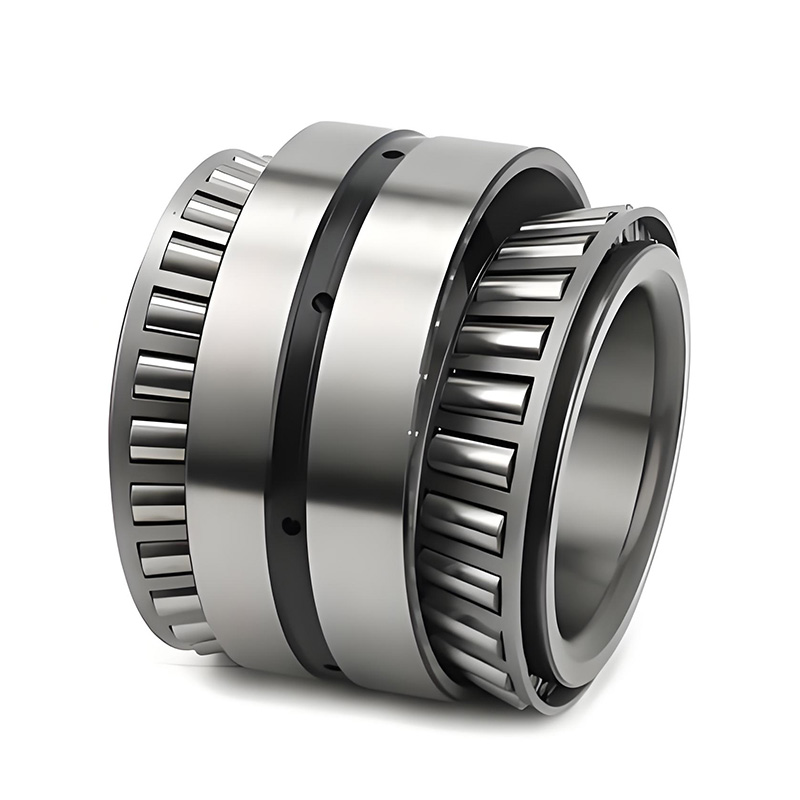

The 352122 Double Row Tapered Roller Bearing is a metric standard bearing with dimensions 110×180×95mm, featuring a TDO (Tapered Double Outer) integrated outer ring structure for excellent rigidity and stability. It is fully interchangeable with equivalent models from top international brands, sharing the same core dimensions and load capacity for direct replacement in heavy machinery, gearboxes, mining equipment and other demanding applications.
Manufactured in accordance with ISO 9001 standards using high-quality GCr15 bearing steel, our 352122 bearing delivers performance and precision comparable to leading international brands, making it a reliable and cost-effective alternative to SKF, FAG, NSK and other premium bearings. We also provide customized solutions for special requirements including high temperature resistance, high-speed operation and specific clearance settings to meet diverse application needs.
Interchange Brand Reference
- NSK: HR 352122 (Fully interchangeable)
- NTN: 4T-352122 (Fully interchangeable)
- Koyo: 352122JR (Fully interchangeable)
- FAG: 352122 (Fully interchangeable)
- SKF: BT2B 328553/328554 (Similar structure, please verify dimensions)
- Timken: 388A/384D (Cross-reference, please verify dimensions)
Note: Models marked as “Fully interchangeable” are direct replacements for the 352122 (110×180×95mm) double row tapered roller bearing. For SKF and Timken equivalents, we recommend confirming critical dimensions before ordering.
Key Features
- Integrated Double Outer Ring (TDO Design): The outer ring is an integrated double-row structure, which improves the overall rigidity and ensures stable operation under heavy loads.
- Independent Double Inner Rows: Consists of two sets of inner ring assemblies, each equipped with tapered rollers, to bear combined radial and axial loads.
- High-Strength Tapered Rollers: Arranged in a cone angle direction to uniformly distribute stress, enhancing load capacity and service life.
- Precision Cage Guidance: Features a window-type cage structure (stamped steel as standard) to guide rollers smoothly and reduce friction.
- Optimal Internal Clearance: Pre-designed internal structure ensures excellent adaptability to speed, temperature, and fluctuating loads.
Applications
- Heavy Machinery
- Gearboxes
- Mining Equipment
- Rolling Mills
- Construction Machines
- Wind Turbines
- Hoisting Equipment
- Industrial Transmission Systems
Related Products
Delivery & Service
Brand
WJY / OEM Available
Quality Standard
Origin
Wafangdian, China (30+ years manufacturing hub)
Delivery Time
In-stock: 3–5 days; OEM/ODM: 20–35 days.
Shipping
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Loading Port
Dalian Port / Customer Port
Packing
Export packing: tube + box + carton + wooden case
Order
Mixed models & mixed batch welcome
Pricing
Prices vary by precision & material.
