32956X2A/DF Technical Specifications
| Bearing Type | Double Row Tapered Roller Bearings |
|---|---|
| d (ID) | 280mm |
| D (OD) | 380mm |
| B (Width of one row) | 120mm |
| T(Total Width) | 129mm |
| Dynamic Load (Cr) | 1100kN |
| Static Load (Cor) | 2770kN |
| Mass | 44.1Kg |
| Grease speed | |
| Oil speed | |
| Material | High-carbon chromium bearing steel (GCr15 / 52100 equivalent) |
| Cage | Standard pressed steel cage |
| Clearance | Normal clearance (CN) |
| Precision | P0 / Normal grade |
Product Description
32956X2A/DF is a DF face-to-face matched tapered roller bearing set consisting of two precision matched 32956 bearings. The bearing pair is factory matched to provide reliable support for combined radial and axial loads while maintaining stable operating characteristics.

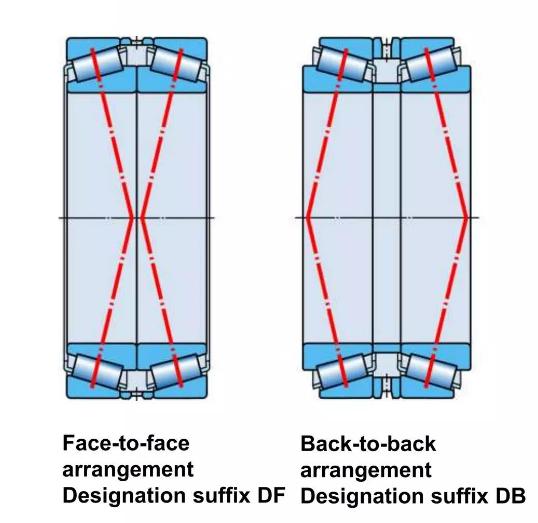

The DF arrangement allows the bearing set to accommodate axial loads in both directions and offers greater tolerance to shaft deflection and installation inaccuracies compared with back-to-back configurations. This characteristic makes DF matched bearings particularly suitable for applications where alignment conditions may vary during operation.
Compared with DB back-to-back matched bearing arrangements, the DF configuration provides improved accommodation of mounting errors and operating misalignment, while still delivering excellent load-carrying capacity and dependable shaft support.
Typical applications include industrial gearboxes, reducers, pumps, crushers, conveyors and other heavy-duty rotating equipment requiring reliable performance under combined loading conditions.
Key Features
- DF Face-to-Face Matched Bearing Configuration
- Supports Combined Radial and Axial Loads
- Accommodates Axial Loads in Both Directions
- Improved Tolerance to Shaft Deflection and Installation Misalignment
- Factory-Matched for Consistent Mounting and Operating Performance
- Suitable for Heavy-Duty Industrial Applications
Applications
- Industrial Gearboxes
- Reducers
- Crusher Drives
- Pump Systems
- Conveyor Equipment
- Heavy-Duty Power Transmission Machinery
