30220 Bearing Overview

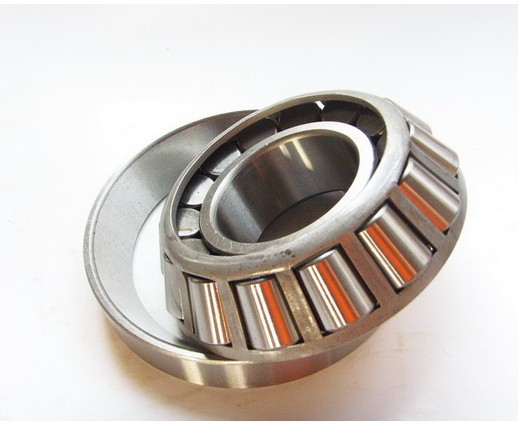

Image for reference only.
Core Parameters
- Main Dimensions 100mm × 180mm × 34mm
- Dynamic Load (Cr) 262 kN
- Static Load (Cor) 340 kN
- Weight 3.56 kg
Bearing Type
Technical Specifications
| ID | 100mm | Inside diameter(I.D.) |
|---|---|---|
| OD | 180mm | Outside diameter(O.D.) |
| B | 34mm | Thickness |
| T | 37mm | Overall Height |
| Cr | 262kN | Radial dynamic load rating |
| Cor | 340kN | Radial static load rating |
| Grease speed | 1900r/min | Limiting speed (grease lubrication) |
| Oil speed | 2800r/min | Limiting speed(oil lubrication) |
| Mass | 3.56Kg | Weight |
Material
GCr15 Bearing Steel (Customizable: GCr15 / GCr15SiMn / GCr18Mo / G20Cr2Ni4A)
Cage
Pressed steel cage (Customizable: Steel / Brass / Machined Brass)
Precision Rating
P0 (P0 / P6 / P5 / P4 available)
Clearance
Brand
WJY / OEM Available
Origin
Wafangdian, China (30+ years bearing manufacturing hub)
Quality Standard
OEM & Customization
Custom materials, cages, precision & clearance available.
Product Description
Tapered Roller Bearing 30220 belongs to the 302 Series - Standard (Single Row Tapered Roller Bearing), engineered for medium to heavy-duty radial and single-direction axial load applications. With a bore diameter of 100mm, outer diameter of 180mm, width of 34mm, and assembly height of 37mm, this medium-bore bearing is made of high-quality GCr15 steel for excellent durability and wear resistance.
Key features: standard contact angle, balanced load capacity, most widely used. It has a basic dynamic load rating of 262kN and basic static load rating of 340kN, ensuring reliable operation under high load conditions. With a net weight of kg, it features a robust yet balanced design for easy handling and installation.
Typical Applications: automotive wheel hubs, general machinery
Delivery & Service
Delivery Time
In-stock: 3–5 days; OEM/ODM: 20–35 days.
Shipping Methods
Ocean Freight / Land Transport
Warranty
12-month warranty, extendable to 18 months.
Pricing Information
Prices vary by precision & material. Please submit an inquiry for best quote.
