013.45.1600 Technical Specifications
| Bearing Type | Single-row Four Point Contact Ball Slewing Bearings |
|---|---|
| Gear Type | Internal gear type |
| d (ID) | 1460mm |
| D (OD) | 1740mm |
| B (Width) | 110mm |
| Dynamic Load (Cr) | |
| Static Load (Cor) | 7020kN |
| Mass | 550Kg |
| Material | GCr15 steel balls, 50Mn/42CrMo rings, raceway hardened and precision ground |
| Cage | Segmented brass or steel spacer blocks (optional per working condition) |
| Clearance | Standard axial-radial play, custom play available on request |
| Precision | P0 standard precision |
Bolt Hole Diameter
| D1 | 1687 mm |
|---|---|
| D2 | 1513 mm |
| dn1 dn2 | 26 |
| dm1 dm2 | M24 |
| L | 48 mm |
| n | 45 mm |

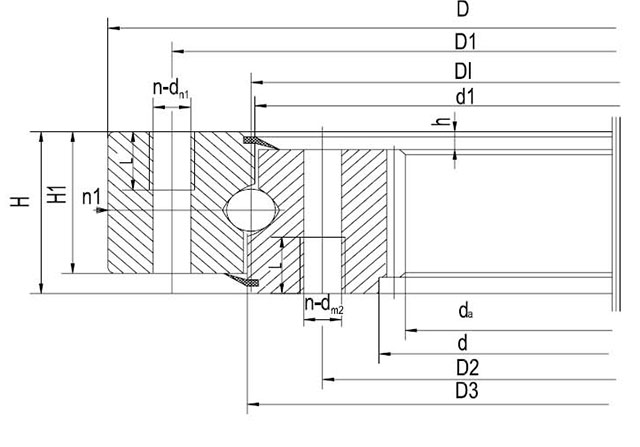

Structure dimensions
| n1 | 5 mm |
|---|---|
| D1 | 1602 mm |
| d1 | 1598 mm |
| H1 | 100 mm |
| h | 10 mm |
Gear
| b | 90 mm | Tooth width |
|---|---|---|
| m | 90 | Module |
| da | 1391.6 mm | Tooth tip diameter of internal gear ring |
| z | 100 | Number of teeth of internal gear |
Product Description
013.45.1600 is a single-row four-point-contact ball slewing bearing with an internal gear. It features a 1600mm raceway center circle diameter. Its gothic-arch four-point-contact raceway enables the bearing to accommodate bidirectional axial loads, radial loads and tilting moments within a single bearing structure. This model is driven by a pinion engaging with the internal teeth. The bearing measures 1460mm in bore diameter, 1740mm in outside diameter and 110mm in overall height. With stable rotation, comprehensive load capacity and easy maintenance, it is widely used in cranes, rotary platforms and heavy industrial equipment.
Key Features
Single-row four-point-contact ball design, Handles bidirectional axial, radial and tilting-moment loads, P0 precision standard, Segmented brass or steel spacer blocks, Internal gear for compact drive, Compact cross-section
Applications
Rotary tables, Indexing equipment, Wind turbines, Medical equipment, Robotic turntables
