NN and NNU are two precision cylindrical roller bearing series widely used in machine tool spindles, industrial gearboxes, and high-accuracy rotating machinery. Both deliver exceptional radial rigidity and high load capacity, yet their internal raceway design, roller guidance and applicable speed ranges differ significantly. This guide explains the core distinctions, interchange limitations and optimal application scenarios for NN and NNU bearings.
Quick Selection Guide by Application
High speed & high precision: Choose NN
Maximum radial load capacity: Choose NNU
Floating bearing position: Choose NN or NNU based on shaft expansion needs
1. Core Structural Differences Between NN and NNU Bearings

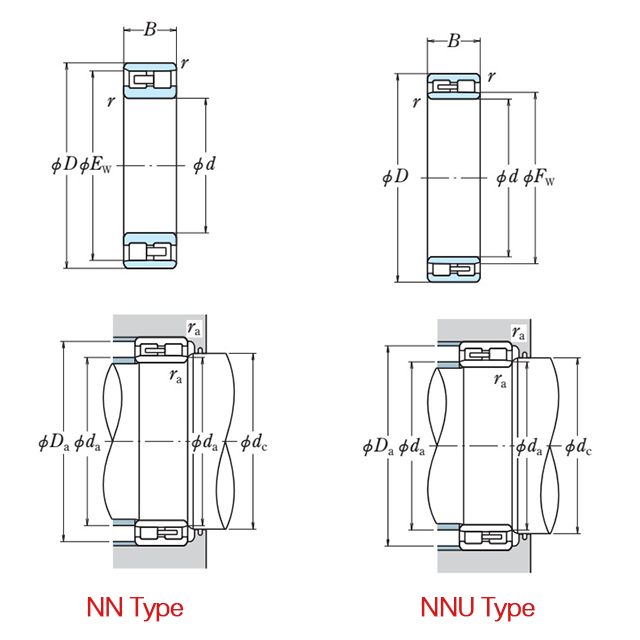

| Bearing Series | Inner Ring Design | Outer Ring Design | Roller Guidance | Standard Cage Type | Axial Displacement Capability |
|---|---|---|---|---|---|
| NN | Double raceways with integral center rib | Single integrated outer ring | Inner ring ribs guide rollers | Machined brass cage or pressed steel cage | Limited axial movement (floating bearing with restrictions) |
| NNU | Double raceways without center rib (full roller complement possible) | Single integrated outer ring with integral center rib | Outer ring ribs guide rollers | Machined brass cage, pin-type cage, or full complement design | Good axial displacement capacity (suitable as floating bearing) |
2. Design Philosophy & Engineering Applications
NN Series Bearings
Key Advantages
- Superior high-speed performance due to inner ring roller guidance
- Exceptional radial running accuracy for spindle applications
- Integral center rib provides stable roller positioning
- Ideal for machine tool main spindles requiring high rigidity
Limitations
Lower roller count compared to NNU; limited axial displacement capacity
Typical Applications
CNC lathe spindles, milling machine spindles, grinding wheel spindles, precision gearboxes
NNU Series Bearings
Key Advantages
- Maximum radial load capacity with full complement designs
- Outer ring rib guidance handles heavy cutting loads
- Excellent axial displacement for floating bearing positions
- Accommodates larger shaft expansion in high-temperature environments
Limitations
Lower speed capability than NN series; higher operating temperature in full complement versions
Typical Applications
Heavy-duty machine tool spindles, rolling mill backup roll bearings, large industrial gearboxes, paper machinery rolls
3. Performance Comparison: NN vs NNU
| Performance Parameter | NN Series | NNU Series |
|---|---|---|
| Relative Speed Capability | High | Moderate |
| Relative Radial Load Capacity | Moderate | High (very high with full complement) |
| Axial Displacement Capacity | Limited | Excellent |
| Heat Generation | Lower | Higher (especially full complement) |
| Manufacturing Cost | Moderate | Higher |
4. NN vs NNU: Which One Should You Choose?
Choose NN Bearings When:
- Your application requires high rotational speeds (above 10,000 rpm for smaller bores)
- Machine tool spindle demands extreme radial rigidity with minimal heat generation
- Limited axial displacement is acceptable for the application
- Operating conditions prioritize precision over maximum load capacity
- Typical applications: high-speed CNC machining centers, grinding spindles
Choose NNU Bearings When:
- Maximum radial load capacity is the primary selection criterion
- Floating bearing position requires accommodation of shaft thermal expansion
- Operating speeds are moderate (typically below 8,000 rpm depending on size)
- Heavy cutting loads or shock loads are expected
- Full complement design needed for extreme heavy-duty applications
5. Interchange & Matching Notes
Critical Reminder: Same bore size and outer diameter do NOT guarantee direct interchange between NN and NNU bearings.
- NN bearings cannot replace NNU bearings without verifying shaft shoulder design and housing fit requirements
- NNU bearings have different inner ring raceway geometry than NN — the rib location changes load distribution
- Always confirm original bearing drawings, speed requirements and load conditions before selecting NN or NNU models
- Consult factory engineering team for cross-reference and application-specific recommendations
6. Frequently Asked Questions About NN and NNU Bearings
NN indicates a double-row cylindrical roller bearing with double raceways on the inner ring and a single integrated outer ring. The inner ring contains integral ribs for roller guidance. NNU designates the opposite configuration — double raceways on the outer ring with integral outer ring ribs, while the inner ring has no center rib.
NNU bearings generally provide higher radial load capacity, especially in full complement versions without a cage. The outer ring rib guidance allows more rollers or larger roller diameters compared to NN bearings with inner ring ribs. For extreme heavy-duty applications requiring maximum load capacity, choose NNU full complement designs.
NN bearings have limited axial displacement capacity due to their inner ring rib design. They are typically used as locating bearings. For floating bearing positions where shaft thermal expansion needs to be accommodated, NNU bearings are the better choice because their outer ring rib design allows the inner ring to move axially within the bearing.
Both NN and NNU series are available in standard P0 (Normal), P6, P5, P4 precision grades. For machine tool spindle applications, P4 grades are recommended. Contact our engineering team to specify the required running accuracy for your application.
Selection depends on three primary factors: required speed range, radial load magnitude, and whether the position requires axial displacement (floating) or fixed (locating) mounting. Use NN for high-speed, precision locating positions. Use NNU for moderate-speed, heavy-load, or floating bearing positions. Submit your application parameters and original bearing drawings for our engineering team to provide a precise recommendation.
NN bearings typically use machined brass cages (standard) or pressed steel cages for cost-sensitive applications. NNU bearings offer machined brass cages, pin-type through-bolt cages for maximum roller count, or full complement (cageless) designs for extreme load capacity. Full complement NNU bearings have lower speed limits but highest load capacity.
