The NU type cylindrical roller bearing is one of the most widely used industrial cylindrical roller bearings in heavy-duty applications. Designed primarily to support high radial loads while allowing axial displacement, NU series bearings are ideal for equipment that experiences thermal expansion or shaft movement.
With their high load capacity, low friction, and robust structure, NU type roller bearings are commonly used in gearboxes, electric motors, steel mills, and heavy machinery systems.

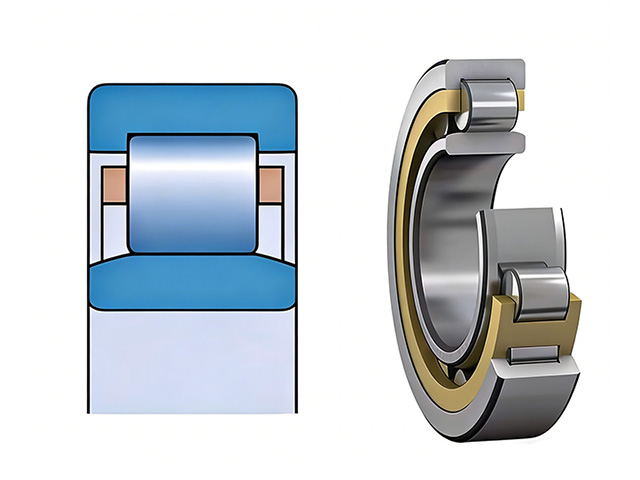

NU Type Cylindrical Roller Bearing Structure
The NU type cylindrical roller bearing features a unique design where the outer ring has two fixed ribs, while the inner ring has no ribs. This structure allows the inner ring to move axially relative to the outer ring.
- Outer ring: two ribs to guide rollers
- Inner ring: no ribs, allowing axial displacement
- Rollers: cylindrical shape for high radial load capacity
- Cage: maintains roller spacing and reduces friction
This design makes single-row cylindrical roller bearings particularly suitable for applications where shaft expansion occurs due to temperature changes.
Key Features of NU Type Bearings
High Radial Load Capacity
NU type bearings are designed to support heavy radial loads, making them ideal for industrial machinery operating under high stress conditions.
Axial Displacement Capability
The inner ring can move freely, allowing compensation for thermal expansion and shaft misalignment.
Low Friction and High Speed
Optimized roller design reduces friction, enabling higher operating speeds compared to other heavy-duty bearings.
Easy Installation and Maintenance
The separable design allows convenient mounting and dismounting, reducing maintenance time.
NU vs NF Cylindrical Roller Bearings
While NU type bearings allow axial movement in both directions, NF type cylindrical roller bearings have one rib on the outer ring and one rib on the inner ring, allowing limited axial positioning in one direction.
- NU type: Free axial movement
- NF type: Semi-locating bearing
- Application difference: NU for floating positions, NF for positioning support
Common NU Series and Typical Models
Based on our inventory, popular NU type cylindrical roller bearing models include:
- NU232E – General industrial applications
- NU2944Q1 – Heavy-duty gearboxes
- NU1036M – High-speed electric motors
- NU2344M/C3 – Steel mill equipment
- NU1034M – Precision transmission equipment
- NU232EQ1 – High-temperature applications
- NU2232EM – Heavy machinery & mining
- NU1040M – Large electric motors
For additional NU series models or custom requirements, please contact our engineering team.
Applications of NU Type Cylindrical Roller Bearings
Electric Motors
Used as floating bearings to accommodate shaft expansion during operation.
Gearboxes
Provide high radial load support while allowing axial displacement in transmission systems.
Steel Industry
Widely used in rolling mills and heavy-duty equipment due to their durability and load capacity.
Heavy Machinery
Ideal for construction and mining equipment requiring reliable bearing performance.
Conclusion
The NU type cylindrical roller bearing is a reliable solution for applications requiring high radial load capacity and axial displacement. Its unique structure makes it essential in modern industrial systems.
Choosing the right bearing type and working with a professional bearing manufacturer ensures long-term performance and reduced maintenance costs.
